1-1546122-1

AMP1-1546122-1
Heilind Number:AMP1-1546122-1
Manufacturer:TE Connectivity
Manufacturer Number:1-1546122-1
Datasheet:Datasheet
ECAD Model:
3D Model

Description:

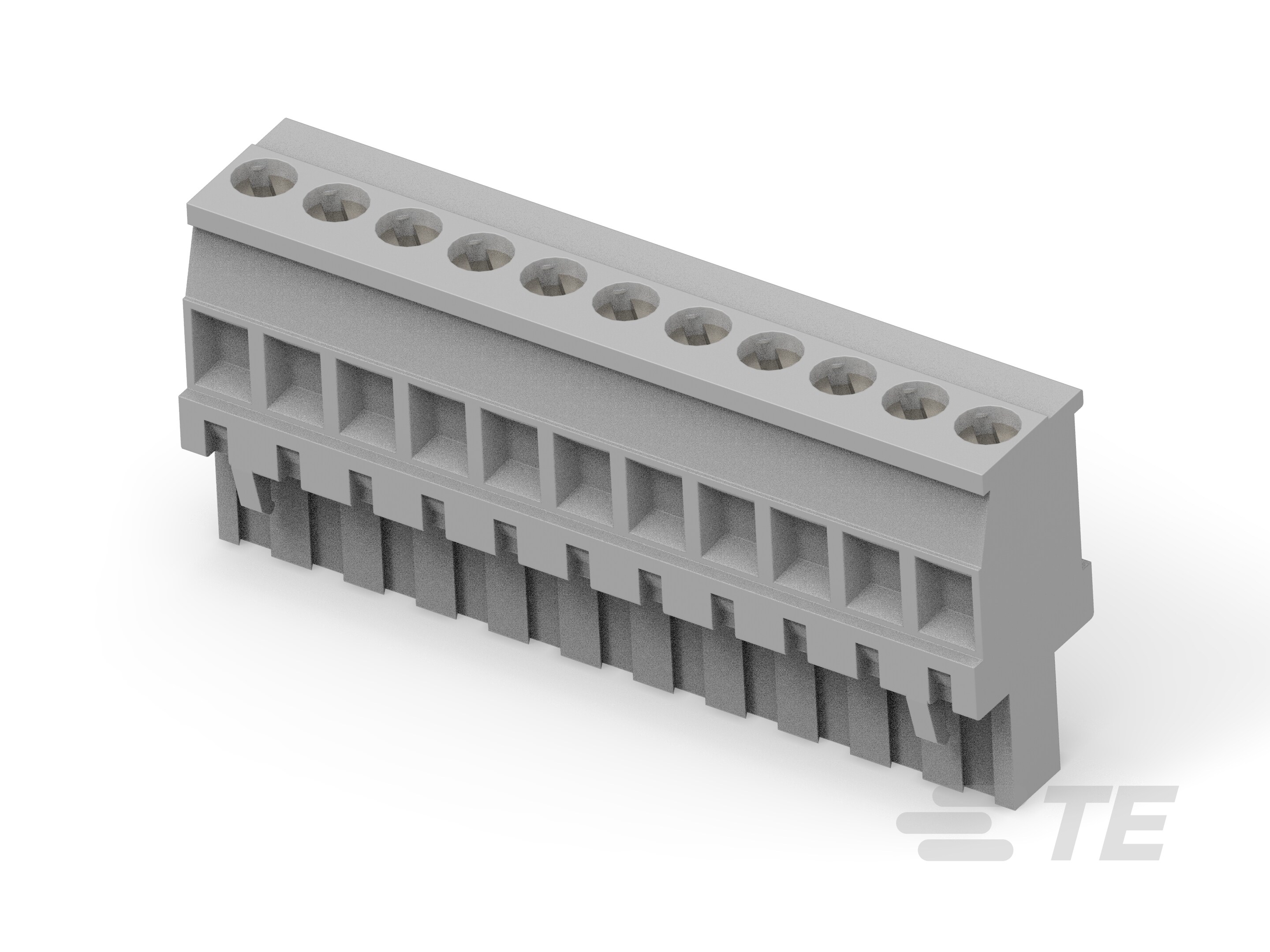

EUROSTYLE 11POS VERT PLUG STCK

More >>

Specifications

AttributeValue
Product Category:
Pluggable Terminal Blocks & Headers Pluggable Terminal Block Headers
Manufacturer:TE Connectivity
Manufacturer Part Number:TE Connectivity 1-1546122-1
Amperage:15 A
Gender:Plug
Housing Material:PA 6/6
Number of Contacts:11
Number of Rows:1
Contact Material:Phosphor Bronze
Pitch:.2 in, 5.08 mm
Voltage:300 V AC
Mount Angle:Vertical
Block Type:Stacking Plug
Screw Size:M3
Package Quantity:100
Contact Amperage:15 A
Number of Positions:11
Housing Color:Gray
GPL:124
Packaging:Box
Operating Temperature Range:-40 - 105 °C, -40 - 221 °F
Circuit Application:Power & Signal
Contact Mating Area Plating:Tin
GPL Description:Industrial
Connector and Contact Terminate To:Wire & Cable
Product Code:7743
Wire Size:.05 - 3 mm², 12 - 30 AWG
Connector System:Wire to Board
Screw Material:Brass
Stacking Configuration:Side Stackable
ECCN:EAR99
Screw Plating:Nickel
Body Color:Gray
Entry Angle:Side
Interlock:Without
Marking Color:White
Screw Flange:Without
Screwless Terminal Block:No
Wire Protection:With
Part Aliases:1-1546122-1
SKU:AMP1-1546122-1

Detailed Description

EUROSTYLE 11POS VERT PLUG STCK is a versatile and reliable terminal block connector designed for power and signal applications in industrial settings. With a compact vertical plug housing made of durable PA 6/6, it offers excellent performance and longevity in harsh environments. Featuring 11 contacts in a single row, each made of high-quality phosphor bronze with tin plating, it ensures secure and efficient wire termination for 12-30 AWG cables. Rated for 15 A and 300 V AC, this connector is suitable for a wide range of power and signal transmission tasks. Its stackable design with M3 screws allows for easy installation and maintenance, while its gray color and white marking make it easy to identify and organize within a system. With RoHS compliance and operating temperatures ranging from -40 to 105 °C, it guarantees safety and reliability in any application. The EUROSTYLE 11POS VERT PLUG STCK is the perfect choice for demanding industrial environments where quality and performance are paramount.
