1-1437559-1

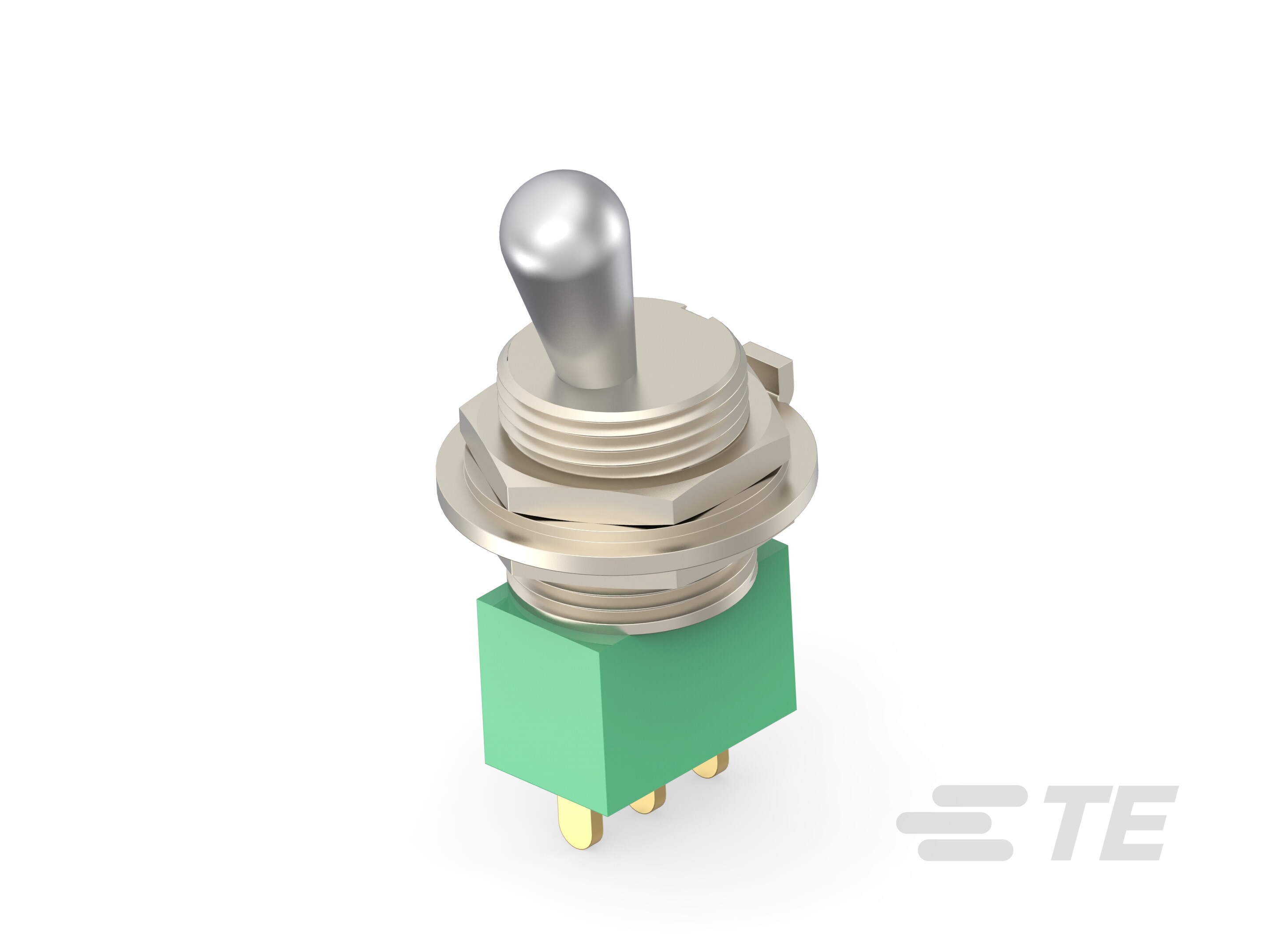

MTG106D=(MSTG) SW TOG MUSTANG
The MTG106D=(MSTG) SW TOG MUSTANG, a high-performance toggle switch designed for precision control in electronic applications. With a durable Panel mount type and a robust copper alloy contact material plated with Gold Flash over Silver, this switch ensures reliable conductivity and longevity. Featuring a Seal Type Terminal Seal (Insert Molded) construction, it offers enhanced protection against environmental factors. The SPDT contact configuration and On-None-On switch operation provide versatile functionality, making it ideal for a wide range of tasks. With a rated voltage of 125 VAC and a current rating of 6 A, this switch delivers efficient and consistent performance. The Toggle Style Baton Short design offers ease of use, while its RoHS compliance guarantees environmental responsibility. Trust the MTG106D toggle switch for seamless and dependable operation in your electronic systems.
Details
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 1-1437559-1 |
| Amperage: | 6 A |
| Mount Type: | Panel |
| Contact Material: | Copper Alloy |
| Contact Plating: | Gold Flash over Silver |
| Seal Type: | Terminal Seal (Insert Molded) |
| Switch Type: | Toggle |
| Bushing Type: | Threaded |
| Contact Configuration: | SPDT |
| Switch Operation: | On - None - On |
| Termination Type: | Vertical, Wire Lugs |
| Rated Voltage: | 125 VAC |
| Toggle Style: | Baton Short |
| Sealed: | Yes |
| SKU: | AMP1-1437559-1 |
| series: | Alcoswitch MTG |
| Color: | Green |
| Actuator Finish: | Chrome |
| Bushing Thread Size: | 15/32-32 |
| Toggle Length: | 11.48 mm / .452 in |
| Insulation Resistance: | 1000 MΩ |
| UL/CSA Current Rating (125V): | 6 A |
| UL/CSA Current Rating (250V): | 3 A |
| Contact Resistance: | 10 mΩ |
| Dielectric Strength: | 1500 VAC |
| Toggle Switch Voltage Rating: | 125 VAC / 28 VDC |
| Process Sealed: | No |
| UL Flammability Rating: | UL 94V-0 |
| Product Type: | Switch |
| Toggle Actuation: | Vertical |
| Supplier Product: | Toggle Switches |
| Part Alias: | 1-1437559-1 |
Use With
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
Product Change Notice
Product Change Notice
| Effective Date | Description of Change | Download |
|---|---|---|
| 10/31/2014 | E-14-010733 - Product Improvement. MP and MT switches changing to laser marking method. | Download |
