1-1437457-3
7022PDH3=RLY,STD,OFF,2P,125VD

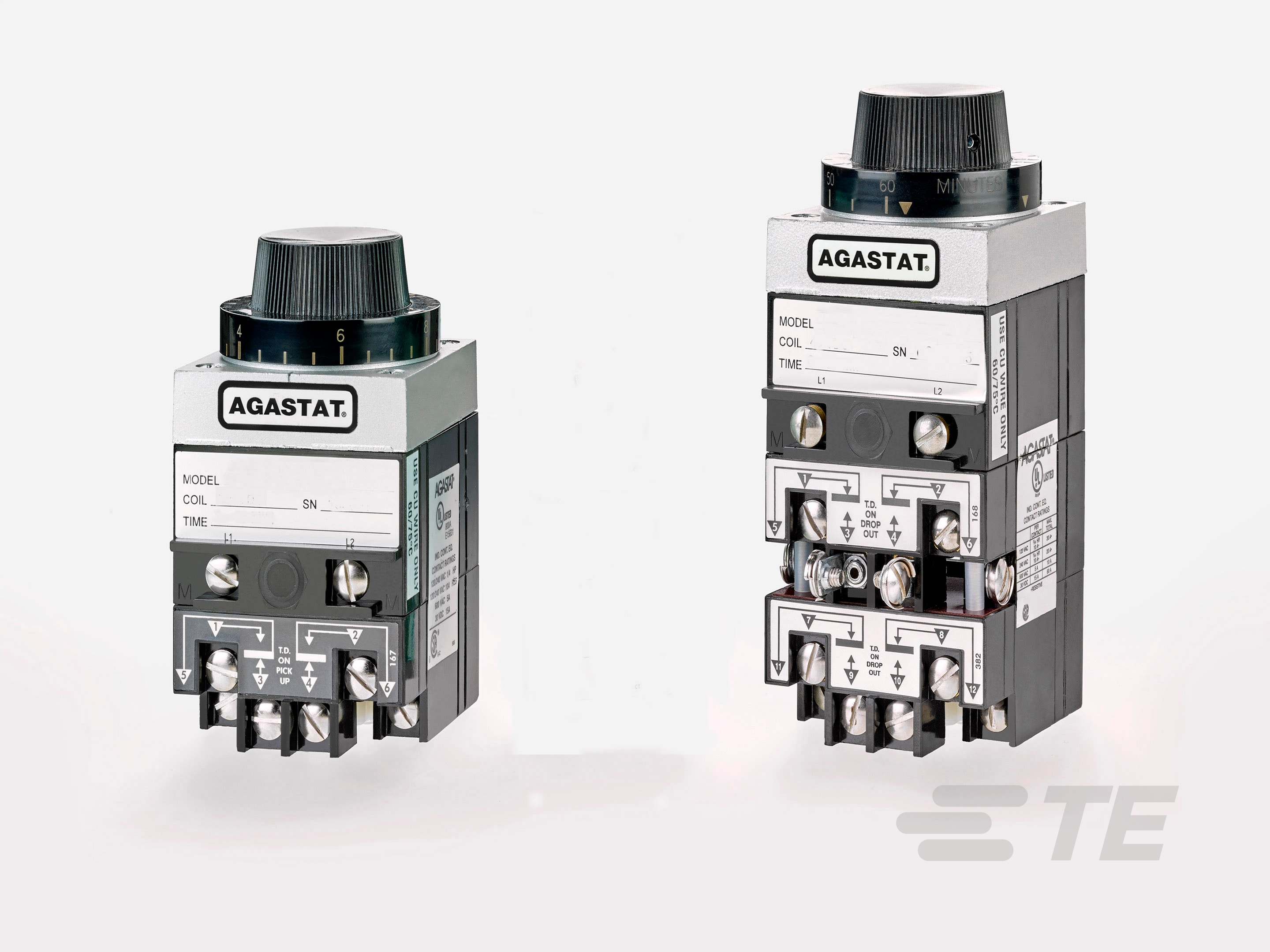

The 1-1437457-3, a high-performance time delay relay designed for precision control applications. Operating at 10 A and 240 VAC, this relay offers reliable performance in a variety of settings. Featuring a convenient mounting bracket and screw terminals for easy installation, it is ideal for both industrial and commercial use. The off-delay operation type, with a repeatability of ±5%, ensures accurate timing in your systems. With a compact design measuring 114.8 x 65.3 x 71.9 mm (4.523 x 2.572 x 2.832 in) and 2 Form C (DPDT) contact arrangement, this relay is suitable for space-restricted environments. The input voltage of 125 VDC and knob control type provide versatility in application. Please note, this product is not RoHS compliant. Upgrade your timing control system with the 1-1437457-3 time delay relay.
Details
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 1-1437457-3 |
| Amperage: | 10 A at 240 VAC |
| Mount Type: | Mounting Bracket |
| Operation Type: | Off-Delay |
| Repeatability: | ±5% |
| Termination Type: | Screw Terminals |
| Dimensions: | 114.8 x 65.3 x 71.9 mm, 4.523 x 2.572 x 2.832 in |
| Contact Arrangement: | 2 Form C, DPDT, 2 C/O |
| Input Voltage: | 125 VDC |
| Control Type: | Knob |
| SKU: | AMP1-1437457-3 |
| Multiple Timing Ranges: | Without |
| Actuating System: | DC |
| Timing Range (Off-Time): | 5 - 50 seconds |
| Option: | Hermetically Sealed Enclosure |
| Product Category: | Electromechanical Relays |
| Product Type: | Relay |
| Relay Type: | Time Delay |
| Magnetic Blow-Out Device: | Without |
| Operating Temperature Range: | -30 - 75 °C |
| Supplier Product: | Time Delay Relays |
| Part Alias: | 1-1437457-3 |
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
