1-1423159-9
7012PB=RLY,STD,ON,2P,125VDC, 5

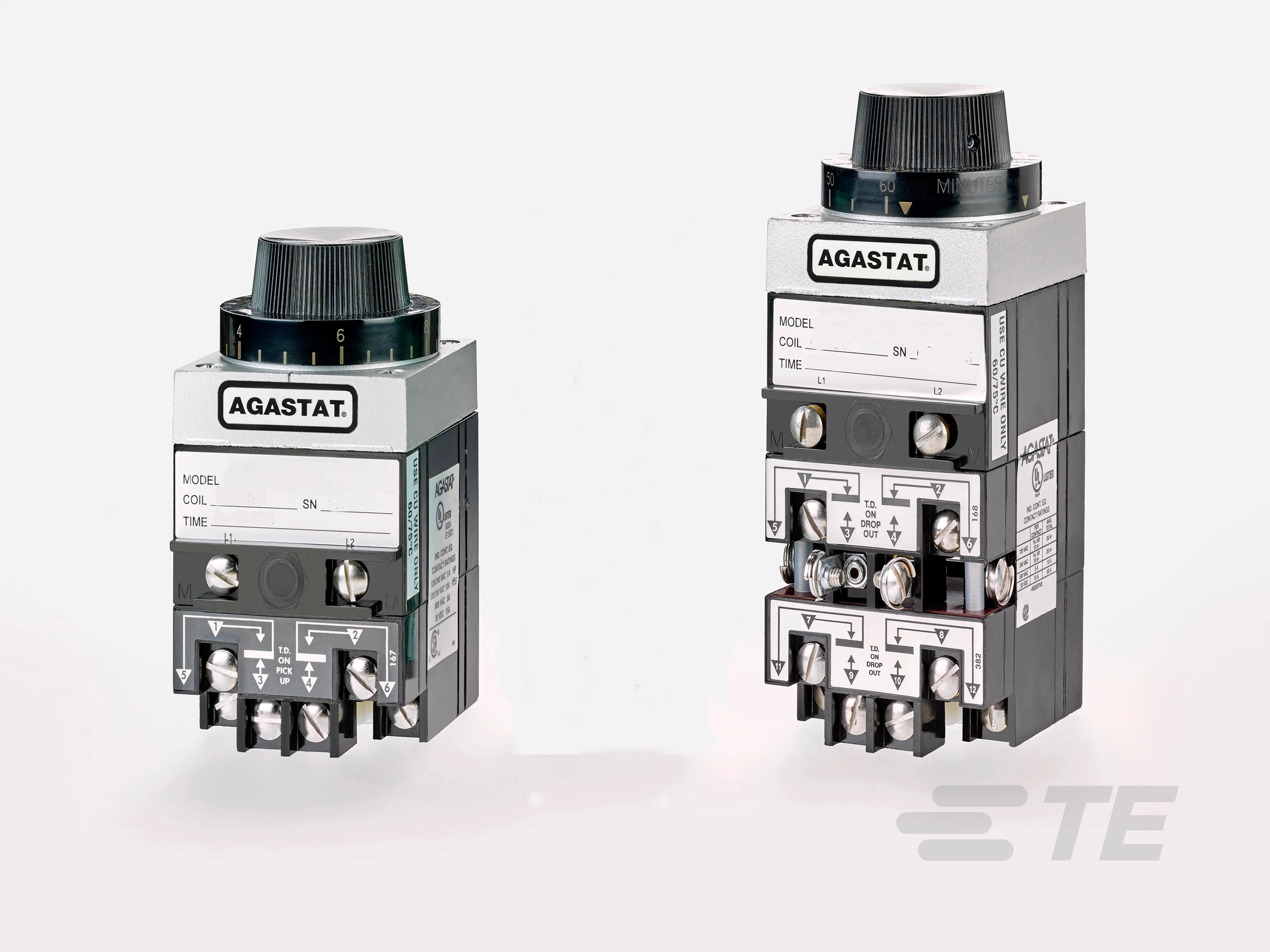

The 1-1423159-9 Time Delay Relay is a versatile and reliable solution for a variety of timing applications. With an amperage rating of 10 A at 240 VAC, this DPDT relay offers robust performance. Featuring a delay time range of .5 to 5 seconds and on-delay operation, it allows for precise timing control. The 2 Form C contact arrangement with screw terminals ensures secure and convenient connectivity. Measuring 114.8 x 65.3 x 71.9 mm, this relay is compact and easy to install using the included mounting bracket. Whether used in industrial machinery or HVAC systems, this relay provides dependable performance. Please note, this product is not RoHS compliant.
Details
| Product Category: | |
| Manufacturer: | TE Connectivity |
| Manufacturer Part Number: | TE Connectivity 1-1423159-9 |
| Amperage: | 10 A at 240 VAC |
| Mount Type: | Mounting Bracket |
| Operation Type: | On-Delay |
| Repeatability: | ±5% |
| Termination Type: | Screw Terminals |
| Dimensions: | 114.8 x 65.3 x 71.9 mm, 4.523 x 2.572 x 2.832 in |
| Contact Arrangement: | 2 Form C, DPDT, 2 C/O |
| Delay Time: | .5 - 5 seconds |
| Input Voltage: | 125 VDC |
| Control Type: | Knob |
| SKU: | AMP1-1423159-9 |
| Multiple Timing Ranges: | Without |
| Actuating System: | DC |
| Product Category: | Electromechanical Relays |
| Product Type: | Relay |
| Relay Type: | Time Delay |
| Magnetic Blow-Out Device: | Without |
| Operating Temperature Range: | -30 - 75 °C |
| Supplier Product: | Time Delay Relays |
| Part Alias: | 1-1423159-9 |
Use With
Compliance
Environmental Initiative Details
| Environmental Initiative: | RoHS |
|---|---|
| Compliant: | Unknown |
| Date of this Information: | Unknown |
| Notes: |
