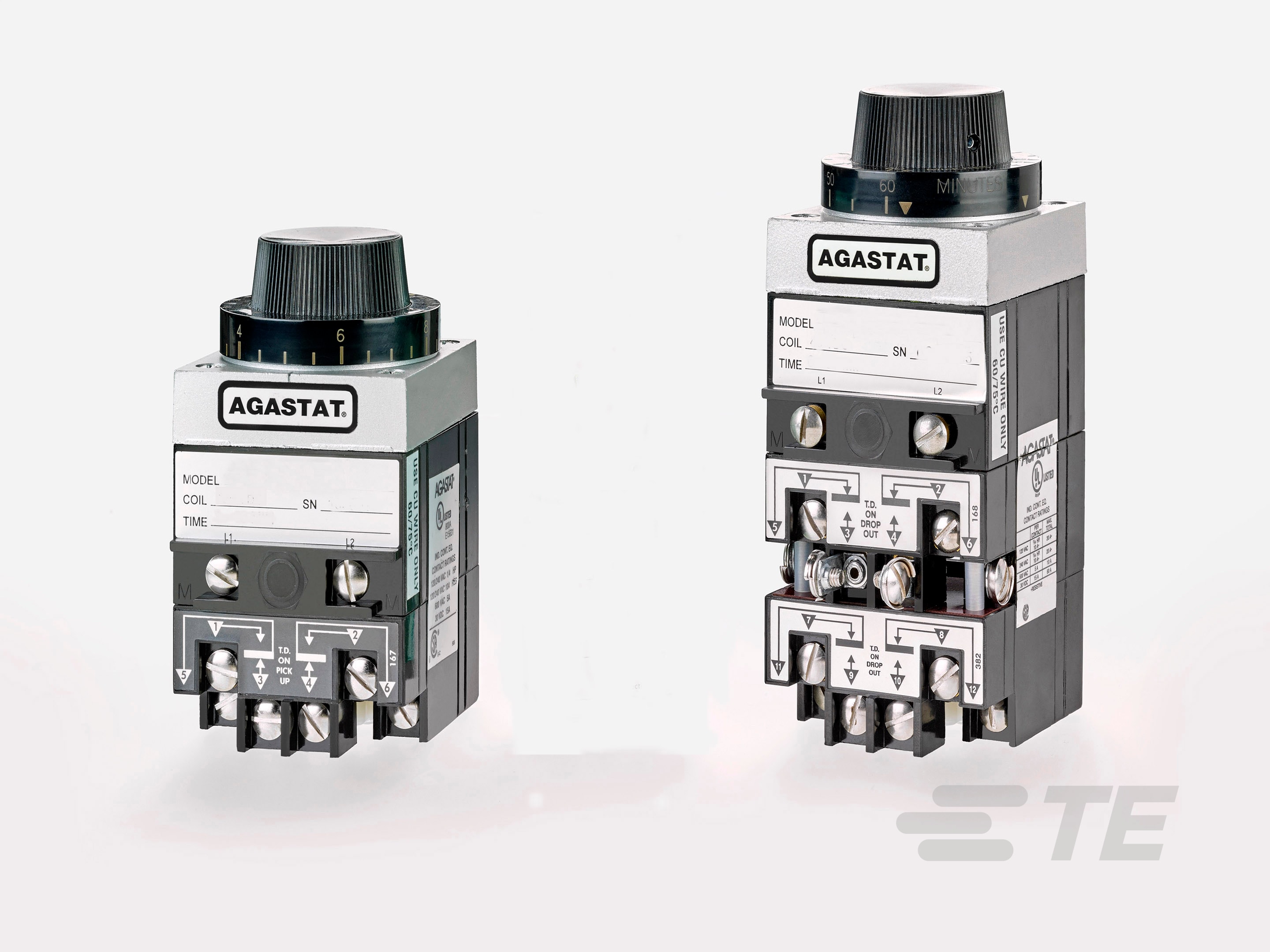

7012PA

Heilind Number:	AMP1-1423159-7
Manufacturer:	TE Connectivity
Manufacturer Number:	7012PA
Datasheet:	Datasheet
ECAD Model:

Description:

7012PA=RLY,STD,ON,2P,125VDC,1

More >>

Specifications

Attribute	Value
Product Category:	Relays Time Delay Relays & Timing Modules
Manufacturer:	TE Connectivity
Manufacturer Part Number:	TE Connectivity 7012PA
Amperage:	10 A at 240 VAC
Mount Type:	Mounting Bracket
Operation Type:	On-Delay
Repeatability:	±5%
Termination Type:	Screw Terminals
Dimensions:	114.8 x 65.3 x 71.9 mm, 4.523 x 2.572 x 2.832 in
Contact Arrangement:	2 Form C, DPDT, 2 C/O
Delay Time:	.1 - 1 seconds
Input Voltage:	125 VDC
Control Type:	Knob
Part Aliases:	7012PA
SKU:	AMP1-1423159-7

Detailed Description

Introducing the 7012PA, a high-performance time delay relay designed for precision control applications. With an amperage rating of 10 A at 240 VAC, this relay ensures reliable power management. Featuring a mounting bracket for easy installation, it offers versatility in setup. Operating on a 125 VDC input voltage, with a delay time of .1 - 1 seconds, it allows for customizable timing functions. The 2 Form C (DPDT) contact arrangement, with 2 C/O contacts, guarantees efficient signal switching. With a repeatability of ±5% and screw terminal termination, this relay offers secure and accurate operation. Its compact dimensions of 114.8 x 65.3 x 71.9 mm make it suitable for various industrial settings. Please note, this product is not RoHS compliant.
