| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3653 404 |
| Gender: | Female |
| Shielded: | Yes |
| IP Rating: | IP40 |
| Wire Size: | 24 AWG |
| Mount Type: | Panel Mount |
| Mating Type: | Screw |
| Mating Cycles: | 1000 cycle |
| Current Rating: | 3 A |
| Voltage Rating: | 150 V |
| Contact Plating: | Gold |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 14 |
| Termination Method: | Solder |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| Series: | C091 M16-A |
| SKU: | AMET 3653 404 |

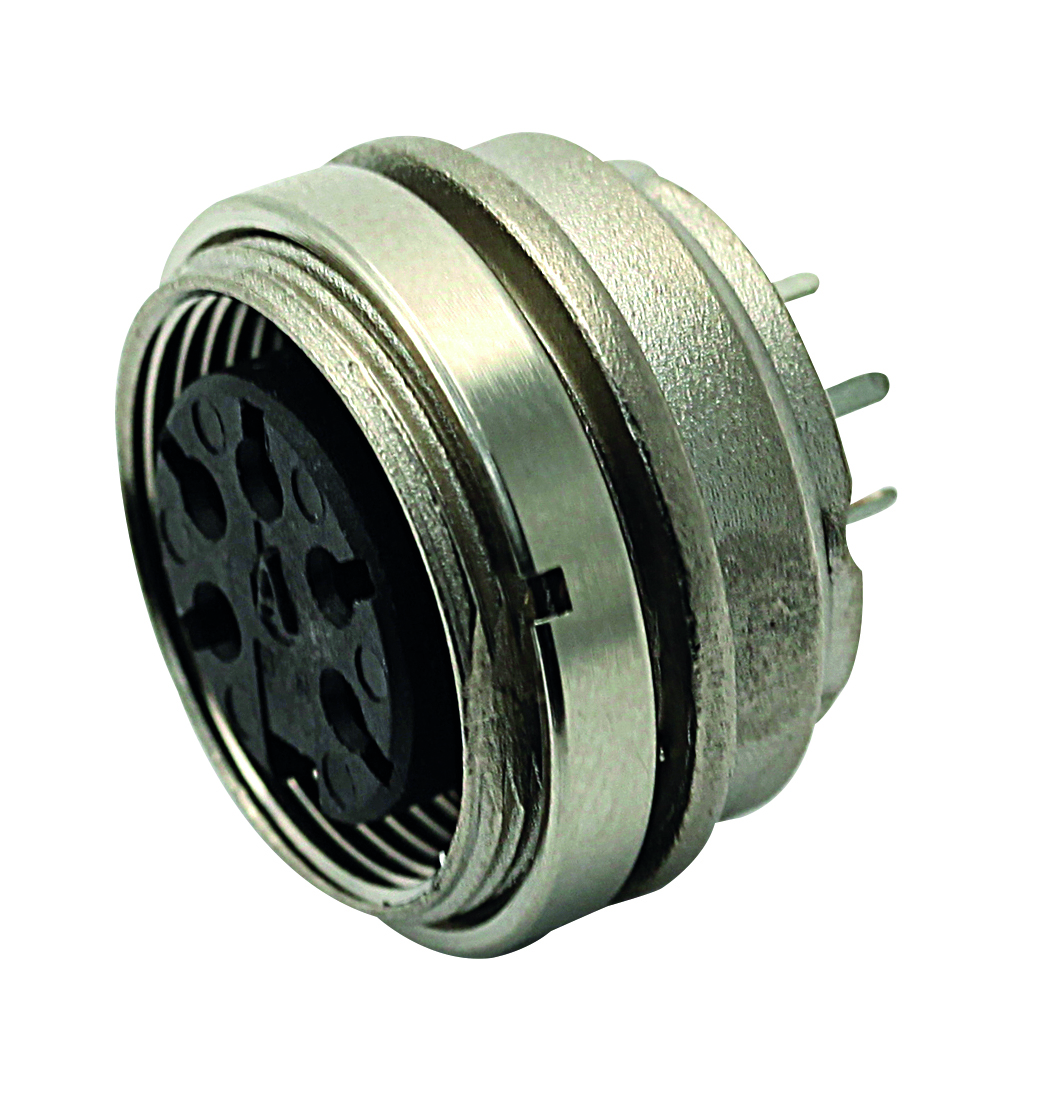

T 3653 404
Specifications
Detailed Description
Introducing the T 3653 404, a high-performance rear mounting female receptacle from the C091 M16-A series. This robust connector features a die-cast zinc housing for durability in demanding environments. With 14 gold-plated contacts, it ensures reliable conductivity, even in extreme temperatures ranging from -40°C to 100°C. Rated IP40 for protection against dust and debris, this connector is ideal for industrial applications. Its panel mount design and solder termination make installation easy, while its screw mating type guarantees a secure connection. With a current rating of 3A and a voltage rating of 150V, the T 3653 404 is RoHS compliant, making it a safe and environmentally friendly choice for your connectivity needs.
Availability
In Stock:
Call
Stock Location:
In Stock
Factory Stock:
Call for Stock
Factory Lead:
Call
Unit Of Measure:
Each
Minimum/Multiple:
1/1
Invalid quantity value
Environmental & Export Classifications
| Attribute | Value |
|---|---|
| RoHS Compliant: | Unkown |
