| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T 3504 002 |
| Gender: | Male |
| Shielded: | Yes |
| IP Rating: | IP40 |
| Wire Size: | 20 AWG |
| Mount Type: | Cable Mount |
| Shell Size: | M16 |
| Mating Type: | Screw |
| Mount Angle: | Straight |
| Mating Cycles: | 500 cycle |
| Current Rating: | 7 A |
| Voltage Rating: | 100 V, 250 V |
| Contact Plating: | Silver |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 8 |
| Termination Method: | Solder |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| SKU: | AMET 3504 002 |
T 3504 002
Specifications
Detailed Description

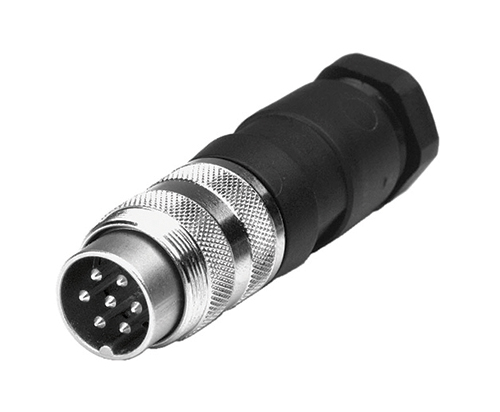

Introducing the C091A male cable mount connector, featuring a durable die-cast zinc housing for reliable performance in industrial environments. With 8 silver-plated contacts, this connector ensures secure and efficient signal transmission. Rated for temperatures ranging from -40°C to 100°C and IP40 sealed, it offers dependable operation even in harsh conditions. The M16 shell size and straight screw mating type make it easy to install, while its solder termination method accommodates 20 AWG wires. With a current rating of 7A and voltage ratings of 100V and 250V, this connector is suitable for a wide range of applications. RoHS compliant and with a mating cycle of 500, the C091A is a high-quality and durable connectivity solution.
