| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems T3504001U |
| Gender: | Male |
| Shielded: | Yes |
| IP Rating: | IP40 |
| Wire Size: | 20 AWG |
| Mating Type: | Screw |
| Mount Angle: | Straight |
| Mating Cycles: | 500 cycle |
| Current Rating: | 7 A |
| Voltage Rating: | 100 V |
| Contact Plating: | Silver |
| Housing Material: | Zinc Die Cast |
| Number of Contacts: | 8 |
| Termination Method: | Solder |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| Series: | C091 M16-A |
| SKU: | AMET3504001U |

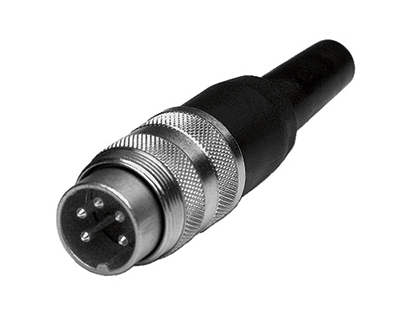

T3504001U
| Heilind Number: | AMET3504001U |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Number: | T3504001U |
| ECAD Model: | |
Specifications
Detailed Description
Introducing the T3504001U, a high-performance male cable connector designed for robust connectivity in industrial applications. With 8-way contact configuration and durable zinc die-cast housing, this connector ensures reliable signal transmission in demanding environments. Featuring silver contact plating and solder termination method, it guarantees secure and low-resistance connections, even at temperatures ranging from -40°C to 100°C. The IP40 rating offers protection against dust and debris, while the shielded design minimizes interference for optimal signal integrity. Suitable for 20 AWG wire with a current rating of 7A and voltage rating of 100V, the T3504001U is ideal for a wide range of power and signal applications. With a mating cycle of 500, it promises long-lasting performance, making it a dependable choice for your connectivity needs. Please note, this product is not RoHS compliant.
