| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems RT001609SNHEC03 |
| Military Specification: | MIL-DTL-26482 |
| Series: | ecomate® RM Series |
| Gender: | Female |
| Housing Material: | Zinc Alloy |
| Number of Contacts: | 9 |
| Mount Type: | Panel Mount |
| Termination Method: | Crimp |
| Contact Material: | Copper Alloy |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP67 |
| Shell Size: | 16 |
| Contact Type: | Socket |
| Mating Type: | Bayonet |
| Seal Material: | Silicone Rubber |
| Shell Size - Insert Arrangement: | 16-9 |
| Shell Material: | Zinc Alloy |
| Mating Cycles: | 500 cycle |
| Wire Size: | 14 to 12 AWG, 26 to 14 AWG |
| Shell Type: | Square Flange Receptacle |
| Shell Finish: | Nickel |
| Current Rating: | 13 A, 23 A |
| Voltage Rating: | 500 V |
| Insert Arrangement: | 16-9 |
| Locking Mechanism: | Bayonet |
| SKU: | AMERT001609SNHEC03 |

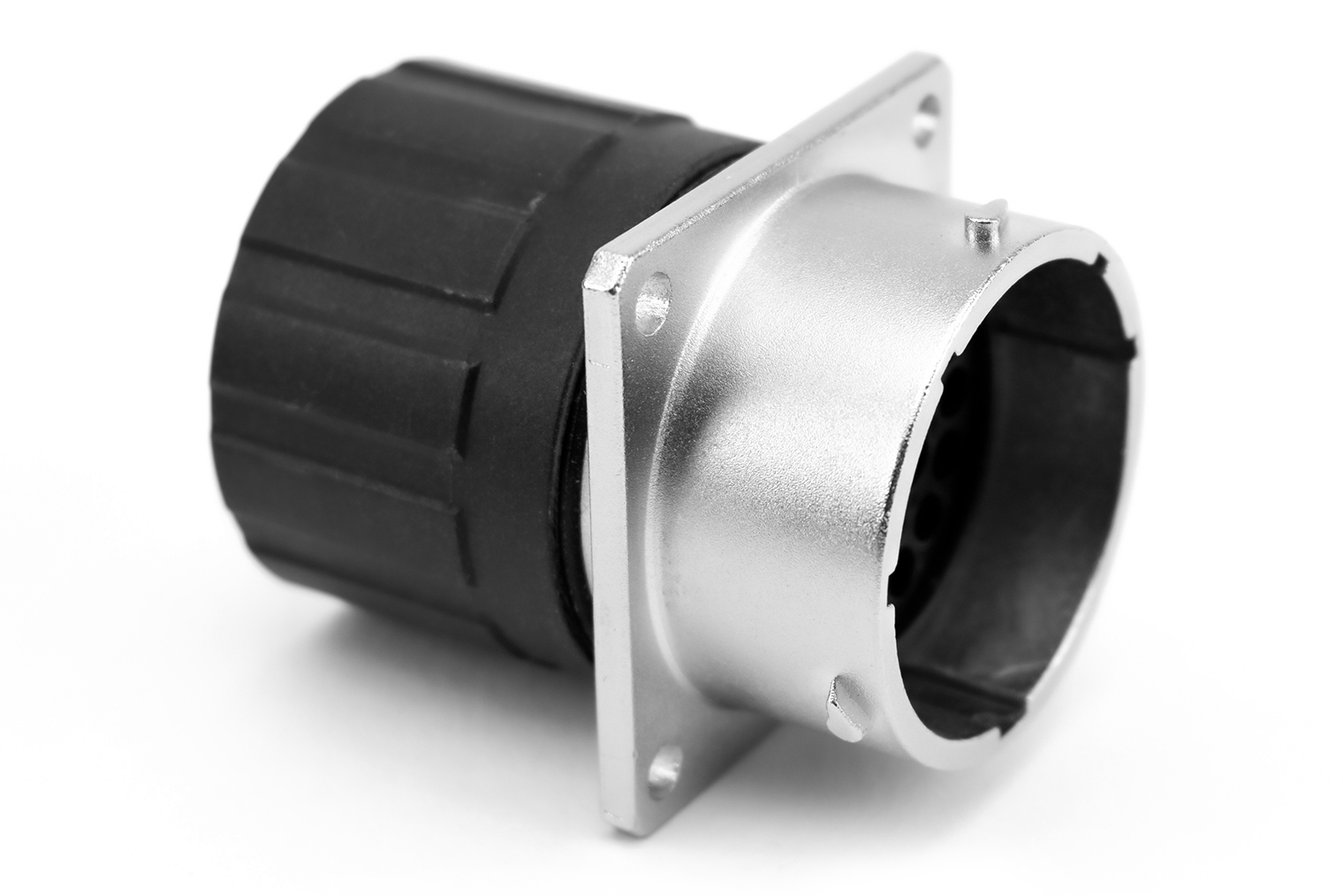

RT001609SNHEC03
| Heilind Number: | AMERT001609SNHEC03 |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Number: | RT001609SNHEC03 |
| ECAD Model: | |
Specifications
Detailed Description
Introducing the RT001609SNHEC03, a rugged and reliable circular connector designed to meet MIL-DTL-26482 military specifications. Part of the ecomate® RM series, this female connector features a durable zinc alloy housing and a silicone rubber seal, offering IP67-rated protection against dust and water ingress. With 9 crimp termination contacts, it ensures secure and efficient connectivity in harsh environments. Suitable for panel mounting, this connector has a shell size of 16 with a bayonet mating type, allowing for quick and easy installation. Rated for a maximum operating temperature of 125°C and a minimum of -40°C, it guarantees performance in extreme conditions. With a current rating of 13A and 23A at 500V, this connector is ideal for high-power applications. The RT001609SNHEC03 is the perfect choice for demanding industrial and military applications, providing reliable and durable connectivity in the harshest of environments.
