| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems MB5CKN15H00-S2 |
| Gender: | Female |
| IP Rating: | IP67 |
| Shell Size: | M23 |
| Mount Angle: | Straight |
| Shell Finish: | Nickel Plated |
| Mating Cycles: | 500 cycle |
| Seal Material: | Dupont Viton |
| Current Rating: | 1.2 A, 30 A |
| Voltage Rating: | 30 V, 630 V |
| Housing Material: | Zinc Die Cast |
| Number of Contacts: | 15 |
| Maximum Operating Temperature: | 130 °C |
| Minimum Operating Temperature: | -20 °C |
| Shell Size - Insert Arrangement: | M23-15 |
| Series: | M23 Elite Checkmate™ |
| SKU: | AMEMB5CKN15H00-S2 |
MB5CKN15H00-S2
Specifications
Detailed Description

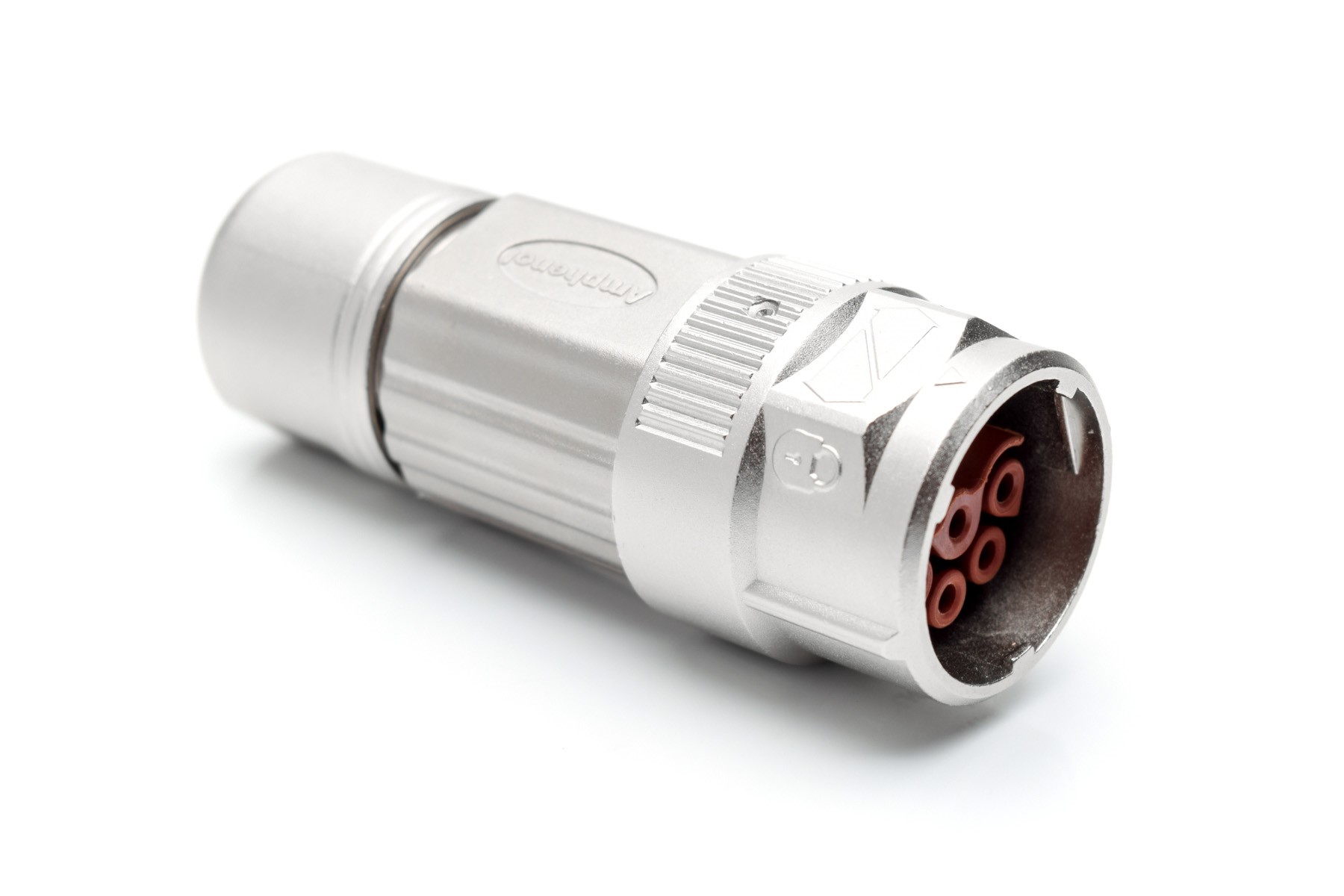

Introducing the MB5CKN15H00-S2, a high-performance M23 Elite Checkmate™ hybrid female plug designed for reliable connectivity in demanding environments. With 15 gold-plated contacts, this connector ensures secure and efficient signal transmission. Constructed from rugged zinc die-cast housing and featuring a straight mount angle, it offers durability and ease of installation. With an IP67 rating and a wide operating temperature range from -20°C to 130°C, it is suitable for use in harsh industrial settings. The Dupont Viton seal provides additional protection, while the nickel-plated shell finish enhances corrosion resistance. Rated for 30A and 630V, this connector is ideal for power and signal applications. With a mating cycle of 500, it guarantees long-term performance. Trust the MB5CKN15H00-S2 for your critical connectivity needs.
