| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems FLS014N3S03-PM |
| Series: | ecomate® Aquarius Fathom Lock |
| Gender: | Female |
| Housing Material: | Plastic |
| Number of Contacts: | 3 |
| Mount Type: | Panel Mount |
| Termination Method: | Crimp |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP69K |
| Shell Size: | 14 |
| Mating Type: | Auto Lock |
| Seal Material: | Silicone Rubber |
| Shell Size - Insert Arrangement: | 14-3 |
| Mating Cycles: | 500 cycle |
| Wire Size: | 12 - 8 AWG |
| Shell Finish: | Black |
| Current Rating: | 45 A |
| Voltage Rating: | 600 V |
| SKU: | AMEFLS014N3S03-PM |
FLS014N3S03-PM
Specifications
Detailed Description

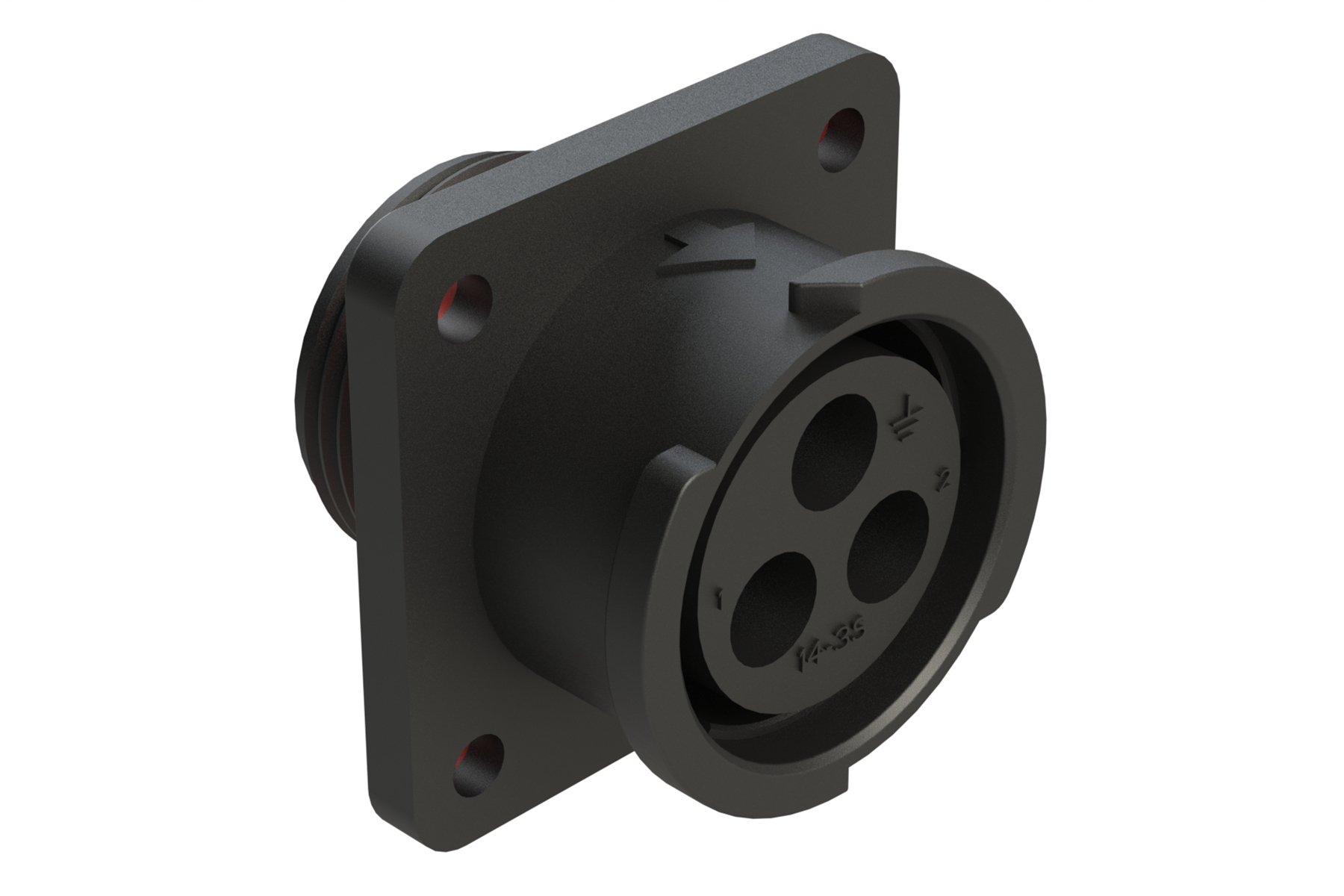

Introducing the FLS014N3S03-PM, a high-performance receptacle designed for seamless connectivity in demanding environments. This Square Flange connector, part of the ecomate® Aquarius Fathom Lock series, features a rugged plastic housing and a Silicone Seal with Seal Gasket, ensuring reliable operation in extreme conditions with an IP69K rating. Its 3-position female configuration, suitable for 12-8 AWG wire sizes, offers secure crimp termination for optimal contact integrity. With a maximum operating temperature of 125 °C and a current rating of 45 A at 600 V, this connector is ideal for power and signal applications in industrial settings. The Auto-Lock mating type, along with a 500-cycle lifespan, guarantees easy and durable connections, while its black shell finish adds a sleek and professional touch. Trust the FLS014N3S03-PM for efficient and dependable circular connectivity in your projects.
