| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems FLS014N2P03 |
| Series: | ecomate® Aquarius Fathom Lock |
| Gender: | Male |
| Housing Material: | Plastic |
| Number of Contacts: | 4 |
| Mount Type: | Panel Mount |
| Termination Method: | Crimp |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP69K |
| Shell Size: | 14 |
| Mating Type: | Auto Lock |
| Seal Material: | Silicone Rubber |
| Shell Size - Insert Arrangement: | 14-4 |
| Mating Cycles: | 500 cycle |
| Wire Size: | 26 - 14 AWG |
| Shell Finish: | Black |
| Current Rating: | 13 A |
| Voltage Rating: | 500 V |
| SKU: | AMEFLS014N2P03 |
FLS014N2P03
Specifications
Detailed Description

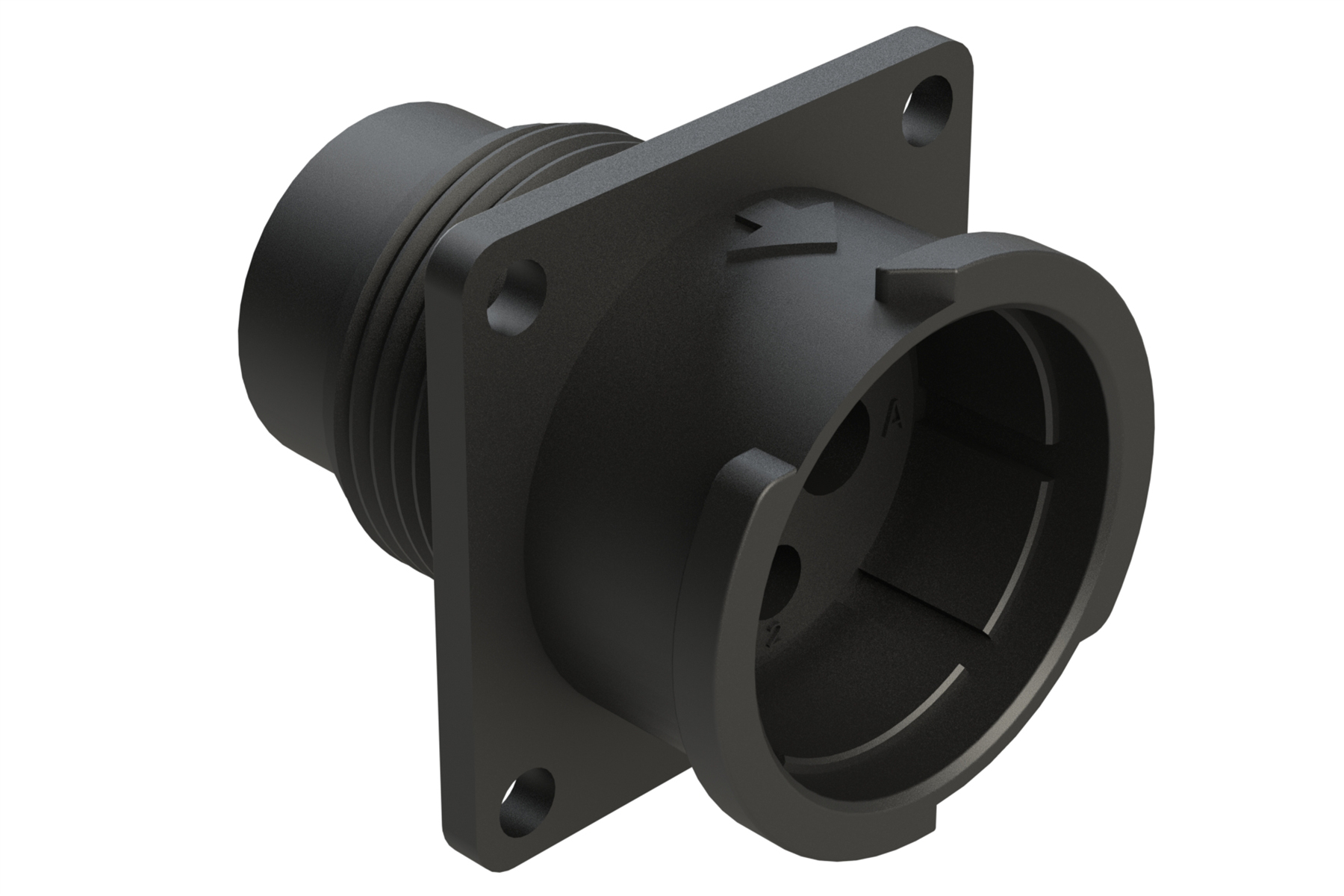

Introducing the FLS014N2P03, a high-performance male receptacle designed for rugged environments. This Square Flange connector, part of the ecomate® Aquarius Fathom Lock series, features 4 22 positions for secure and reliable connections. With a shell size of 14 and a durable plastic housing, it ensures long-lasting durability. The silicone seal and Auto-Lock mechanism provide excellent protection against moisture and vibration, making it ideal for harsh industrial applications. Rated for a wide temperature range from -40°C to 125°C and boasting an IP69K ingress protection rating, this connector is suitable for even the most demanding environments. Its crimp termination method accommodates 26-14 AWG wire sizes, while offering a high current rating of 13 A and a voltage rating of 500 V. With 500 mating cycles, this connector guarantees a long service life, making it a reliable choice for your connectivity needs.
