| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems FLS012N3P03 |
| Series: | ecomate® Aquarius Fathom Lock |
| Gender: | Male |
| Housing Material: | Plastic |
| Number of Contacts: | 3 |
| Mount Type: | Panel Mount |
| Termination Method: | Crimp |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP69 |
| Shell Size: | 12 |
| Mating Type: | Auto Lock |
| Seal Material: | Silicone Rubber |
| Shell Size - Insert Arrangement: | 12-3 |
| Mating Cycles: | 500 cycle |
| Wire Size: | 26 - 14 AWG |
| Shell Finish: | Black |
| Current Rating: | 13 A |
| Voltage Rating: | 600 V |
| SKU: | AMEFLS012N3P03 |
FLS012N3P03
Specifications
Detailed Description

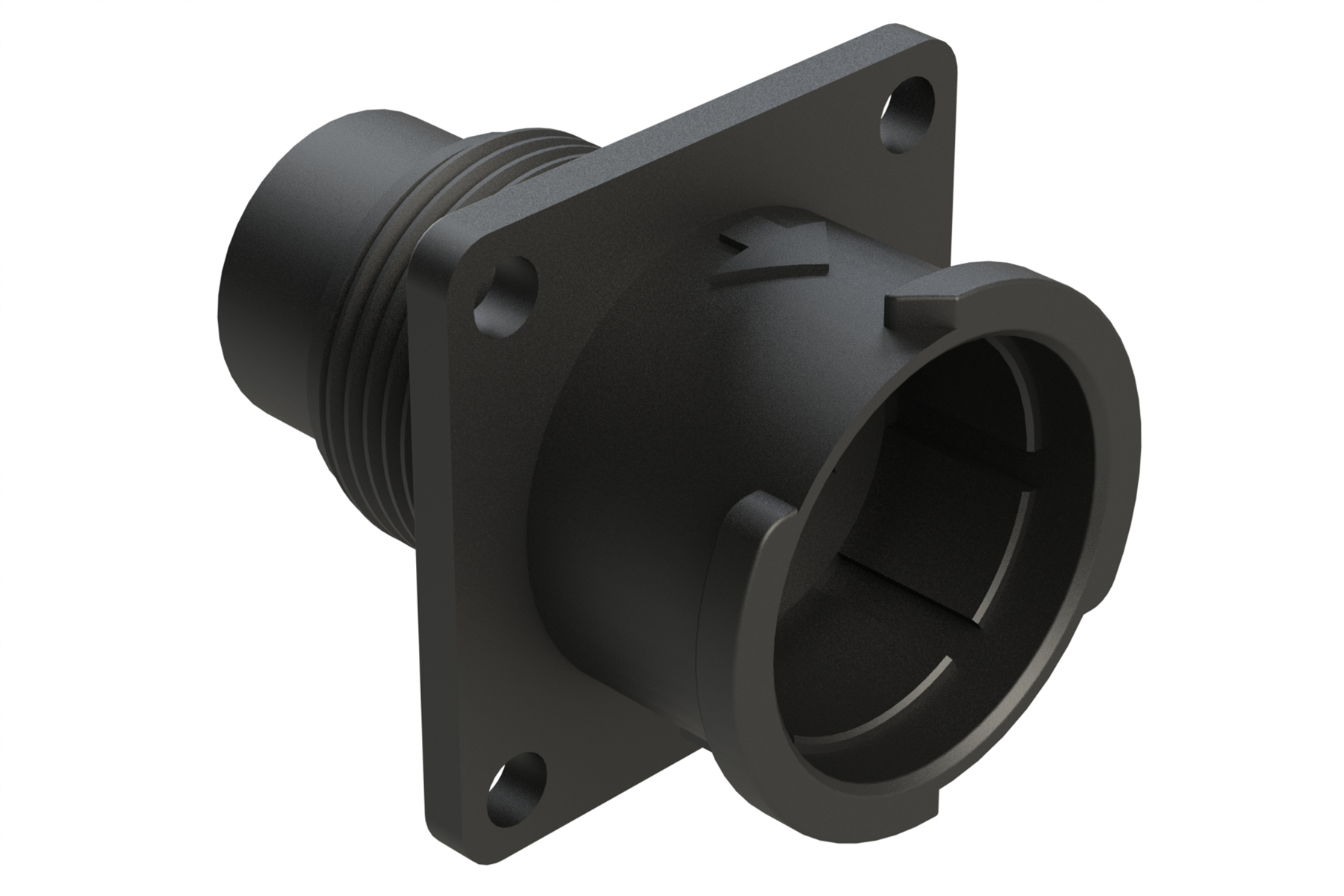

Introducing the FLS012N3P03, a rugged and reliable male receptacle designed for demanding industrial environments. This Square Flange connector, part of the ecomate® Aquarius Fathom Lock series, features 3 positions with pin contacts, ensuring secure and efficient signal transmission. Constructed from durable plastic housing with a black shell finish, it offers excellent protection against harsh conditions. With a wide operating temperature range from -40°C to 125°C and an IP69 rating, this connector is suitable for outdoor and indoor applications. The silicone seal and auto-lock feature provide added security, while the crimp termination method accommodates wire sizes ranging from 26 to 14 AWG. Rated for 13A and 600V, this connector is ideal for power and signal connectivity in a variety of systems. Trust in the FLS012N3P03 for high-performance and durable connections in your industrial setup.
