| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems FLS010N4SHEC03 |
| Series: | ecomate® Aquarius Fathom Lock |
| Gender: | Female |
| Housing Material: | Plastic |
| Number of Contacts: | 4 |
| Mount Type: | Panel Mount |
| Termination Method: | Crimp |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP69 |
| Shell Size: | 10 |
| Mating Type: | Auto Lock |
| Seal Material: | Silicone Rubber |
| Shell Size - Insert Arrangement: | 10-4 |
| Mating Cycles: | 500 cycle |
| Wire Size: | 26 - 14 AWG |
| Shell Finish: | Black |
| Current Rating: | 13 A |
| Voltage Rating: | 500 V |
| SKU: | AMEFLS010N4SHEC03 |

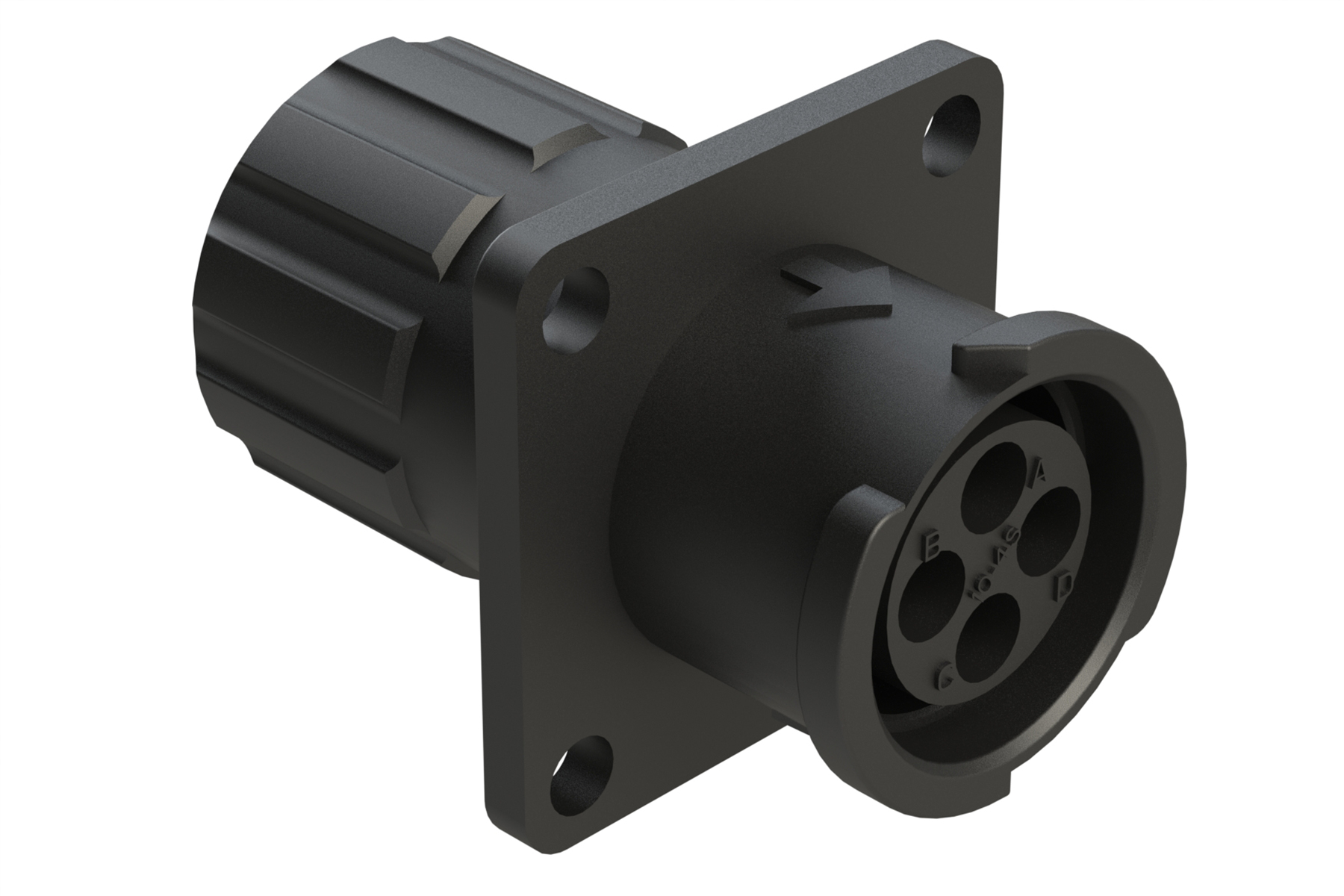

FLS010N4SHEC03
Specifications
Detailed Description
The FLS010N4SHEC03 is a high-performance receptacle designed for demanding industrial applications. Featuring a durable plastic housing and a silicone seal, this square flange connector offers reliable performance in harsh environments. With 4 female contacts and individual wire sealing, it ensures secure and efficient connections. The auto-lock feature and IP69 rating provide added convenience and protection, making it ideal for use in wet and dusty conditions. Rated for a maximum operating temperature of 125°C and a current of 13 A, this connector is suitable for a wide range of power and signal applications. Its black shell finish and compact shell size 10-4 make it an attractive and space-saving choice for panel mounting. Trust in the FLS010N4SHEC03 for rugged, dependable connectivity in your system.
