| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems FLS010N4S03 |
| Series: | ecomate® Aquarius Fathom Lock |
| Gender: | Female |
| Housing Material: | Plastic |
| Number of Contacts: | 4 |
| Mount Type: | Panel Mount |
| Termination Method: | Crimp |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP69 |
| Shell Size: | 10 |
| Mating Type: | Auto Lock |
| Seal Material: | Silicone Rubber |
| Shell Size - Insert Arrangement: | 10-4 |
| Mating Cycles: | 500 cycle |
| Wire Size: | 26 - 14 AWG |
| Shell Finish: | Black |
| Current Rating: | 13 A |
| Voltage Rating: | 500 V |
| SKU: | AMEFLS010N4S03 |

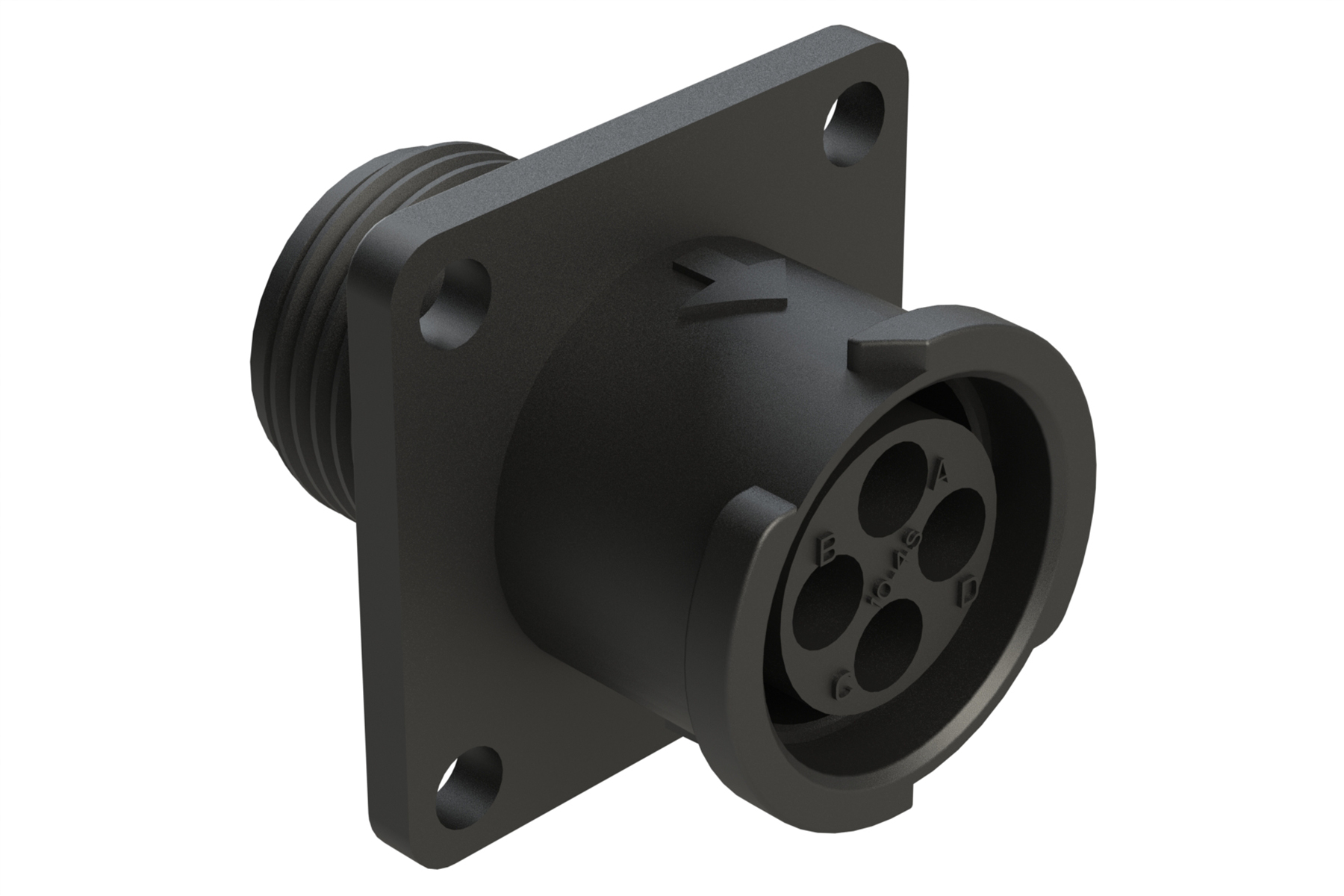

FLS010N4S03
Specifications
Detailed Description
Introducing the FLS010N4S03, a high-performance receptacle designed for demanding applications. This square flange connector, part of the ecomate® Aquarius Fathom Lock series, features a rugged plastic housing and a silicone seal, ensuring reliable operation in harsh environments. With 4 female contacts, it offers secure and efficient connectivity, while the auto-lock feature enhances convenience. Rated for temperatures from -40°C to 125°C and boasting an IP69 ingress protection rating, this connector is suitable for a wide range of industrial settings. Its crimp termination method and compatibility with 26-14 AWG wires make installation a breeze. With a current rating of 13A and a voltage rating of 500V, the FLS010N4S03 is a versatile solution for your circular connector needs.
