| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems FLS010N2PHEC03 |
| Series: | ecomate® Aquarius Fathom Lock |
| Gender: | Male |
| Housing Material: | Plastic |
| Number of Contacts: | 4 |
| Mount Type: | Panel Mount |
| Termination Method: | Crimp |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP69 |
| Shell Size: | 10 |
| Mating Type: | Auto Lock |
| Seal Material: | Silicone Rubber |
| Shell Size - Insert Arrangement: | 10-4 |
| Mating Cycles: | 500 cycle |
| Wire Size: | 26 - 14 AWG, 30 - 20 AWG |
| Shell Finish: | Black |
| Current Rating: | 13 A, 5 A, 7.5 A |
| Voltage Rating: | 500 V |
| SKU: | AMEFLS010N2PHEC03 |
FLS010N2PHEC03
Specifications
Detailed Description

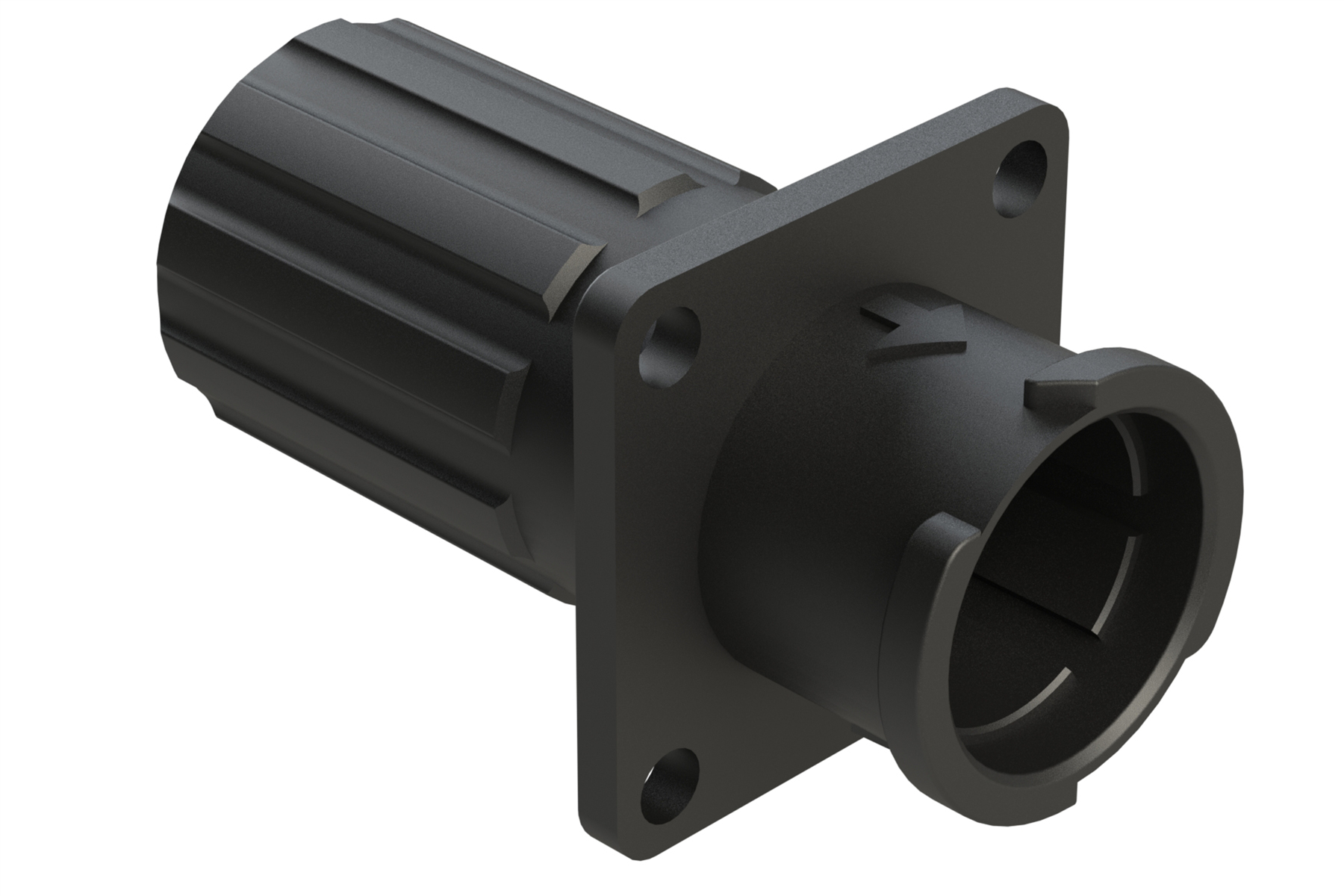

The FLS010N2PHEC03 is a high-performance receptacle designed for industrial applications, featuring a rugged square flange for secure panel mounting. With 4 22-position male contacts, this connector ensures reliable signal transmission in harsh environments. Constructed with a black plastic housing and a silicone seal, it offers excellent protection against moisture and debris, with an IP69 rating for added durability. The auto-lock feature and individual wire sealing make it easy to install and maintain, while accommodating wire sizes ranging from 26 to 14 AWG. With a maximum operating temperature of 125°C and a voltage rating of 500V, this connector is suitable for demanding conditions, making it ideal for use in a wide range of applications.
