| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems C146 B05 001 E8 |
| Color: | Black |
| Series: | Heavymate® M |
| Gender: | Female |
| Housing Material: | Nylon |
| Number of Contacts: | 5 |
| Termination Method: | Crimp |
| Contact Material: | Brass |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP20 |
| Contact Size: | 2.5 mm |
| Mating Cycles: | 500 cycle |
| Wire Size: | 0.5 - 4 mm² |
| Current Rating: | 20 A |
| Voltage Rating: | 400 V |
| SKU: | AMEC146 B05 001 E8 |
C146 B05 001 E8
Specifications
Detailed Description

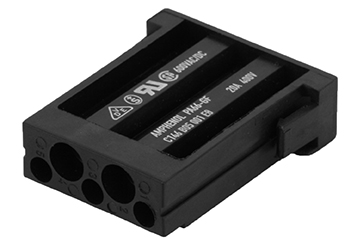

Introducing the C146M Black Female Heavy Duty Power Connector, part of the Heavymate® M series. Constructed with durable nylon housing, this connector features five brass contacts with silver plating, offering reliable power transmission. With a crimp termination method and a contact size of 2.5mm, it ensures secure connections for wires ranging from 0.5 to 4mm². Rated for a maximum operating temperature of 125°C and a voltage of 400V, this connector is suitable for a wide range of industrial applications. Its IP20 rating guarantees protection against solid objects. RoHS compliant and designed for 500 mating cycles, the C146M is a high-quality and dependable solution for power connectivity in demanding environments.
