| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems C146 10B064 000 2 |
| Color: | Gray |
| Series: | Heavymate® D |
| Gender: | Female |
| Housing Material: | Glass-Filled Polycarbonate |
| Number of Contacts: | 65 |
| Termination Method: | Crimp |
| Contact Material: | Brass |
| Contact Plating: | Gold, Silver |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP20 |
| Contact Size: | E24 |
| Mating Cycles: | 500 cycle |
| Wire Size: | 0.14 - 2.5 mm² |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 10 A |
| Voltage Rating: | 250 V |
| SKU: | AMEC146 10B064 000 2 |
C146 10B064 000 2
Specifications
Detailed Description

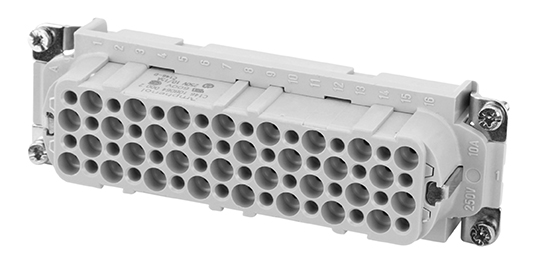

Introducing the C146 10B064 000 2 SOCKET INSERT 64 PIN, a crucial component for heavy-duty power connections in industrial settings. This female insert, part of the Heavymate® D series, features 65 brass contacts with durable gold and silver plating, ensuring reliable conductivity in demanding environments. Constructed with high-quality glass-filled polycarbonate, it offers excellent durability and resistance to heat, with a wide operating temperature range from -40°C to 125°C. Rated for 10 A of current at 250 V, this insert accommodates wire sizes ranging from 0.14 to 2.5 mm², with a crimp termination method for secure installation. With its IP20 rating and UL 94V-0 flammability rating, this insert guarantees safety and performance, making it the ideal choice for power connectors in industrial applications. Please note, this product is not RoHS compliant.
