| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems C146 10A024 000 9 |
| Color: | Gray |
| Series: | Heavymate® DD |
| Gender: | Male |
| Housing Material: | Polycarbonate |
| Number of Contacts: | 25 |
| Termination Method: | Crimp |
| Contact Material: | Brass |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP20 |
| Contact Size: | E6 |
| Mating Cycles: | 500 cycle |
| Wire Size: | 0.14 - 2.5 mm² |
| Flammability Rating: | UL 94V-0 |
| Current Rating: | 10 A |
| Voltage Rating: | 250 V |
| SKU: | AMEC146 10A024 000 9 |

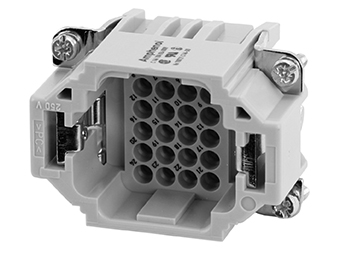

C146 10A024 000 9
Specifications
Detailed Description
Introducing the C146 10A024 000 9, a high-performance male connector from our Heavymate® DD series. Designed for heavy-duty power applications, this connector features a durable polycarbonate housing in a sleek gray color. With 25 brass contacts plated in silver, it ensures reliable conductivity in harsh environments, with a wide operating temperature range from -40°C to 125°C. Rated for 10A at 250V, it accommodates wire sizes from 0.14 to 2.5mm², with a secure crimp termination method. Engineered for longevity, it offers 500 mating cycles and is UL 94V-0 compliant for safety. RoHS certified, it guarantees environmentally friendly construction, making it ideal for a wide range of power connectivity needs.
