C091 31N006 100 2

product logo
ICC Number:AMEC091 31N006 100 2
Manufacturer:Amphenol Sine Systems
Manufacturer Number:C091 31N006 100 2
Datasheet:Catalog
ECAD Model:
3D Model

Specifications

AttributeValue
Product Category:
Circular Connectors & Accessories Circular Connectors
Manufacturer:Amphenol Sine Systems
Manufacturer Part Number:Amphenol Sine Systems C091 31N006 100 2
Connector Type:DIN
Gender:Female
Housing Material:Die-Cast Zinc
Number of Contacts:6
Termination Method:Solder
Contact Plating:Silver
IP Rating:IP67
Shielded:Yes
Wire Size:20 AWG
Current Rating:7 A
Voltage Rating:300 V
Operating Temperature:-40 to 100 °C
Mounting Type:Panel Mount
SKU:AMEC091 31N006 100 2

Detailed Description

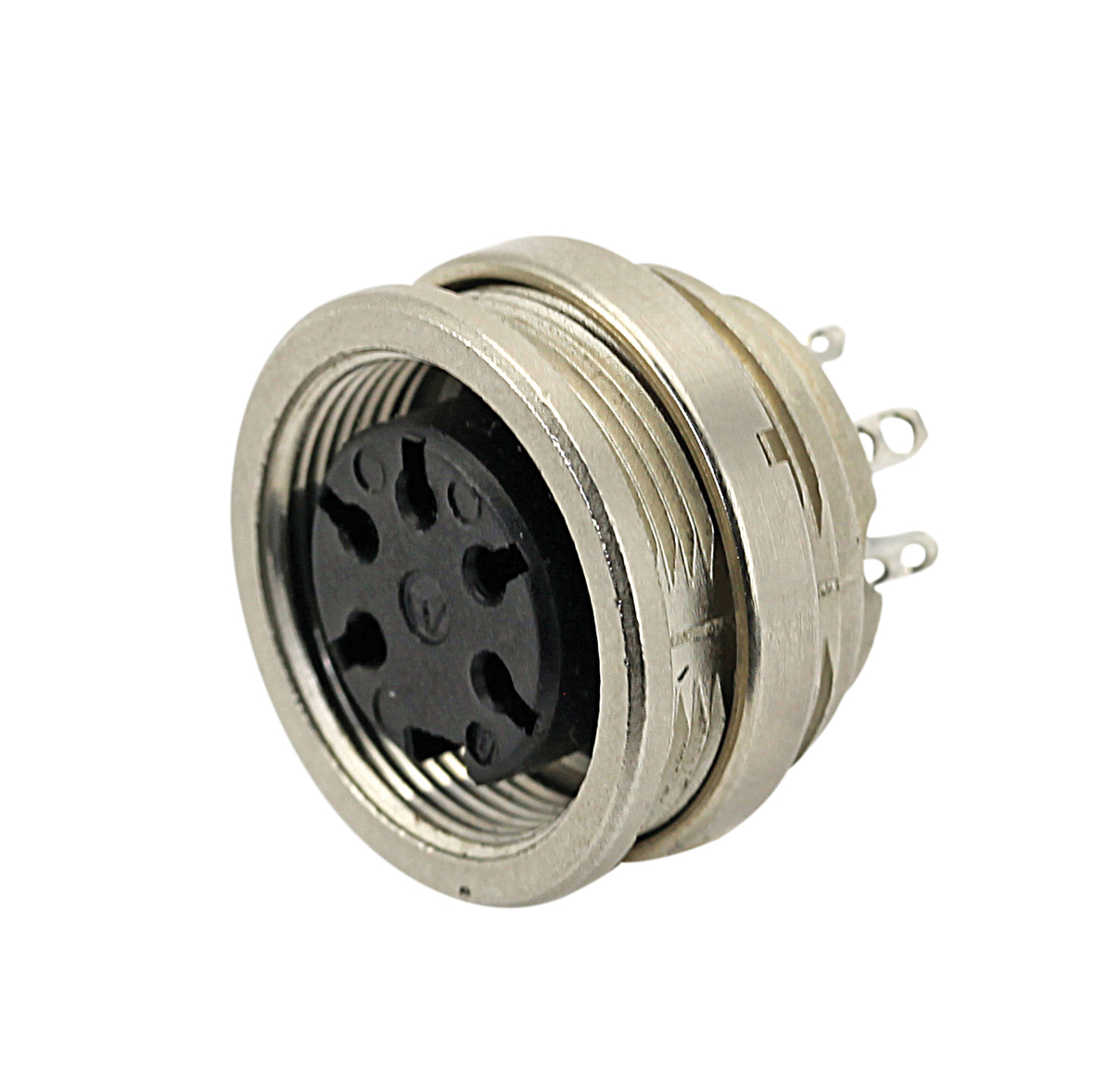

Introducing the C091 31N006 100 2, a high-performance front mounting female metal circular DIN connector designed for robust industrial applications. Constructed from durable die-cast zinc housing, this connector features six silver-plated contacts for reliable signal transmission. With a solder termination method and a maximum operating temperature of 100°C, it ensures secure and stable connections even in harsh environments. Rated for IP67 protection, it offers excellent resistance to dust and moisture. Its panel mount design with a screw mating type guarantees easy installation and secure mating. Suitable for 20 AWG wire size, it has a current rating of 7A and a voltage rating of 300V, making it ideal for power and signal applications. RoHS compliant and in stock for immediate shipping.
