| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems C09131H1071014U |
| Series: | C091 M16-D+ |
| Gender: | Male |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 7 |
| Termination Method: | Solder |
| Contact Plating: | Silver |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP68 |
| Mating Type: | Screw |
| Mount Angle: | Straight |
| Mating Cycles: | 500 cycle |
| Shielded: | Yes |
| Wire Size: | 20 AWG |
| Current Rating: | 7 A |
| Voltage Rating: | 100 V |
| SKU: | AMEC09131H1071014U |
C09131H1071014U
| ICC Number: | AMEC09131H1071014U |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Number: | C09131H1071014U |
| ECAD Model: | |
Specifications
Detailed Description

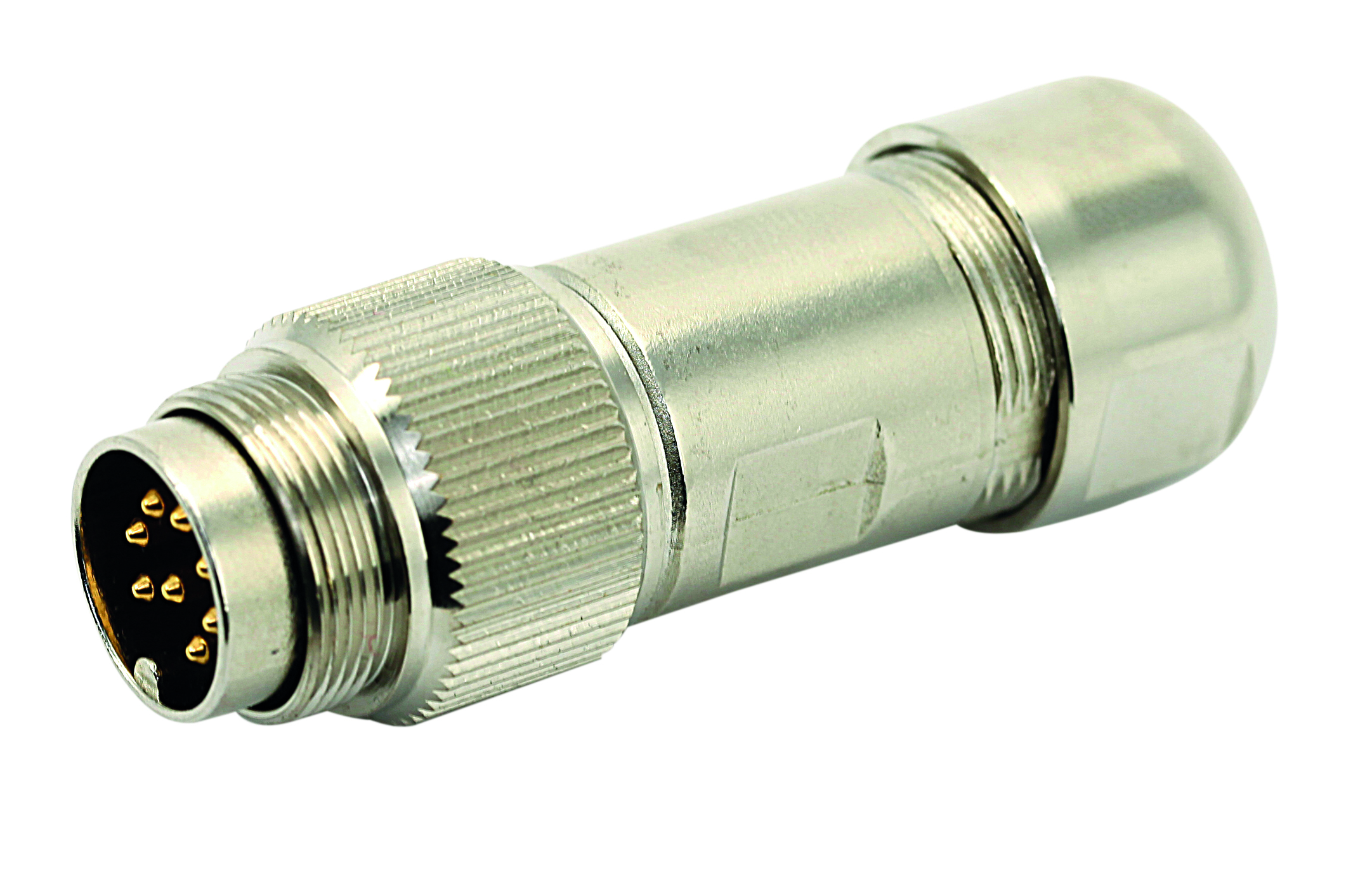

Introducing the C091 M16-D+ male circular DIN connector, featuring a robust die-cast zinc housing for durable performance. With 7 silver-plated contacts and a solder termination method, this connector ensures reliable conductivity in a wide temperature range from -40°C to 100°C, with an IP68 rating for secure outdoor use. Designed for industrial applications, the C09131H1071014U offers a straight mount angle and is shielded for enhanced signal integrity. Suitable for 20 AWG wires, it has a current rating of 7A and a voltage rating of 100V. With a mating type of screw and a lifespan of 500 cycles, this connector is ideal for demanding environments.
