| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems C091 31H004 200 2 |
| Color: | Nickel |
| Gender: | Male |
| Shielded: | Yes |
| IP Rating: | IP69K |
| Wire Size: | 20 AWG |
| Mount Type: | Cable Mount |
| Shell Size: | M16 |
| Mating Type: | Screw |
| Mount Angle: | Straight |
| Mating Cycles: | 1000 cycle |
| Current Rating: | 10 A |
| Voltage Rating: | 250 V, 300 V |
| Contact Plating: | Gold |
| Housing Material: | Die-Cast Zinc |
| Number of Contacts: | 4 |
| Termination Method: | Solder |
| Maximum Operating Temperature: | 100 °C |
| Minimum Operating Temperature: | -40 °C |
| SKU: | AMEC091 31H004 200 2 |
C091 31H004 200 2
Specifications
Detailed Description

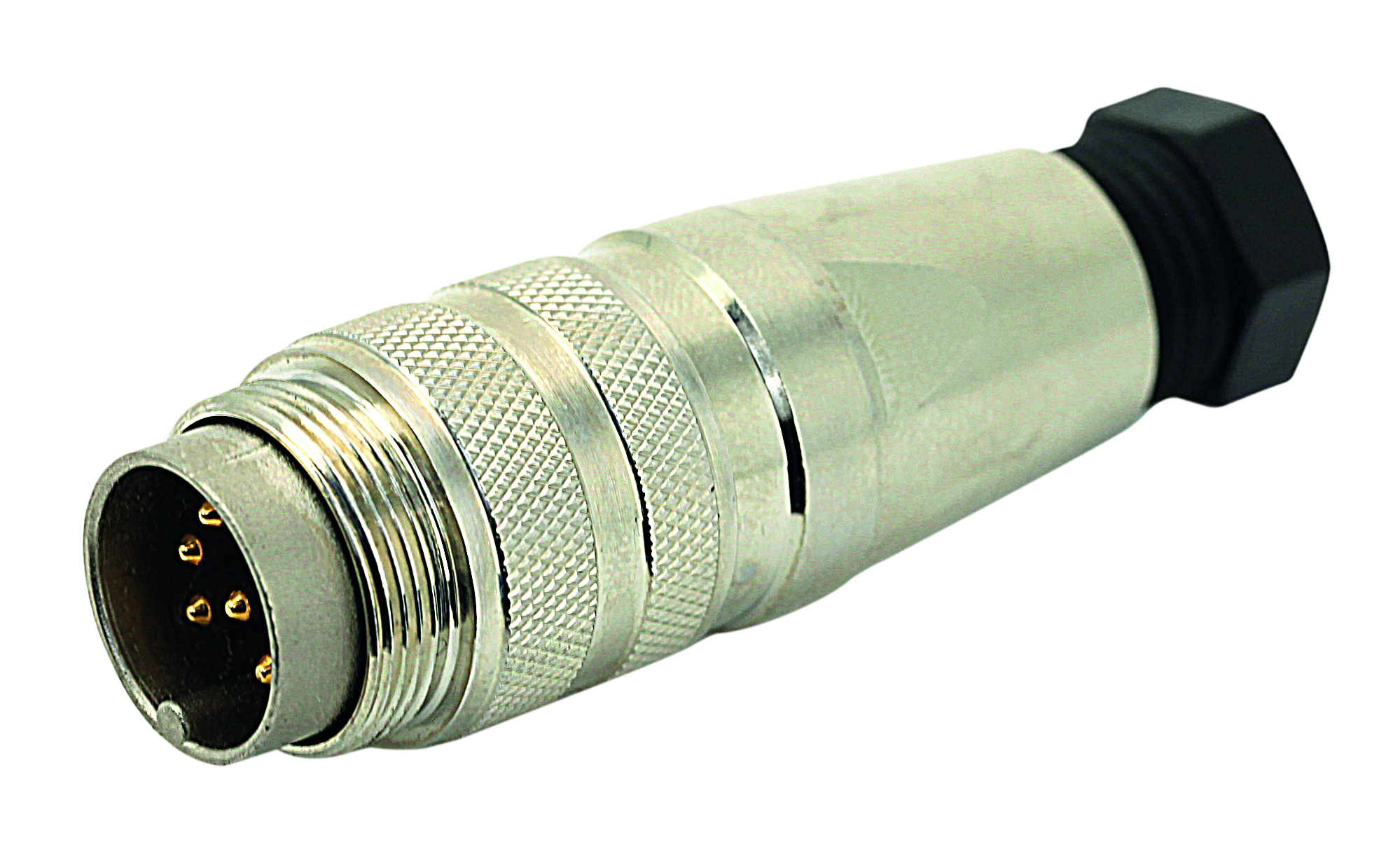

Introducing the C091 31H004 200 2, a high-performance male cable connector designed for rugged industrial applications. Featuring a durable nickel housing constructed from die-cast zinc, this connector ensures reliable connectivity in harsh environments. With four gold-plated contacts and a solder termination method, it guarantees secure and efficient signal transmission. Rated for temperatures ranging from -40°C to 100°C and boasting an IP69K ingress protection, it is suitable for use in demanding conditions. The M16 shell size, screw mating type, and straight mount angle offer versatility in installation. With a 1000 cycle mating life and a current rating of 10A at 250V/300V, this connector is both durable and high-performing. RoHS compliant and suitable for 20 AWG wire, it meets international standards for environmental responsibility. Perfect for use in industrial automation, machinery, and transportation applications, the C091 31H004 200 2 is the ideal choice for reliable and efficient connectivity in demanding environments.
