| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems ATP04-6P-BM13 |
| Color: | Black |
| Series: | BoardLock™ ATP |
| Gender: | Male |
| Housing Material: | Plastic |
| Number of Contacts: | 6 |
| Mount Type: | Panel Mount, PCB Mount, Through Hole |
| Termination Method: | Solder |
| Contact Plating: | Tin |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| IP Rating: | IP69K |
| Mount Angle: | Straight |
| Seal Material: | Silicone Rubber |
| Mating Cycles: | 100 cycle |
| Wire Size: | 14 - 10 AWG |
| Current Rating: | 25 A |
| Voltage Rating: | 250 V |
| SKU: | AMEATP04-6P-BM13 |

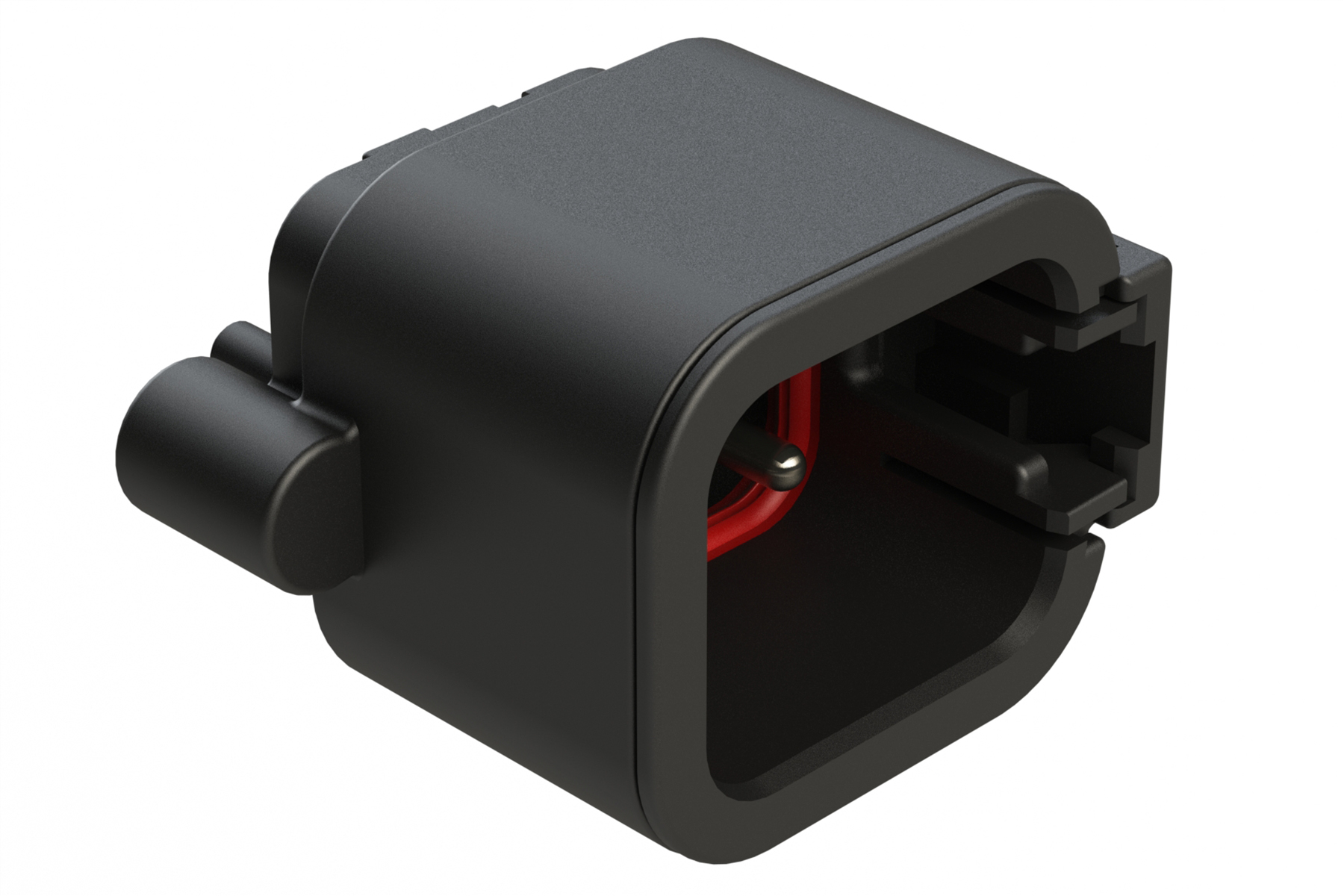

ATP04-6P-BM13
| Heilind Number: | AMEATP04-6P-BM13 |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Number: | ATP04-6P-BM13 |
| Datasheet: | Datasheet |
| ECAD Model: | |
Specifications
Detailed Description
The ATP046PBM13 is a rugged and reliable automotive connector designed for male applications. Featuring a black plastic housing and panel, through hole, and PCB mount options, this connector is versatile and easy to install. With six tin-plated contacts, it offers a secure and durable connection, rated for up to 25A and 250V. Operating efficiently in temperatures ranging from -55°C to 125°C, and boasting an IP69K ingress protection rating, it is suitable for harsh environments. The silicone rubber seal ensures excellent moisture resistance, with a high mating cycle of 100. Accommodating wire sizes of 14-10 AWG, the ATP046PBM13 is ideal for a wide range of automotive applications.
