ATM06-4S-SF01YEL

ICC Number:AMEATM06-4S-SF01YEL
Manufacturer:Amphenol Sine Systems
Manufacturer Number:ATM06-4S-SF01YEL
Datasheet:Catalog
ECAD Model:
3D Model

Specifications

AttributeValue
Product Category:
Manufacturer:Amphenol Sine Systems
Manufacturer Part Number:Amphenol Sine Systems ATM06-4S-SF01YEL
Color:Yellow
Gender:Female
Housing Material:Thermoplastic
Number of Contacts:4
IP Rating:IP69K
Seal Material:Silicone Rubber
Mating Cycles:100
Wire Size:22 to 16 AWG
Current Rating:7.5 A
Voltage Rating:250 V
Operating Temperature:-55 to 125 °C
SKU:AMEATM06-4S-SF01YEL

Detailed Description

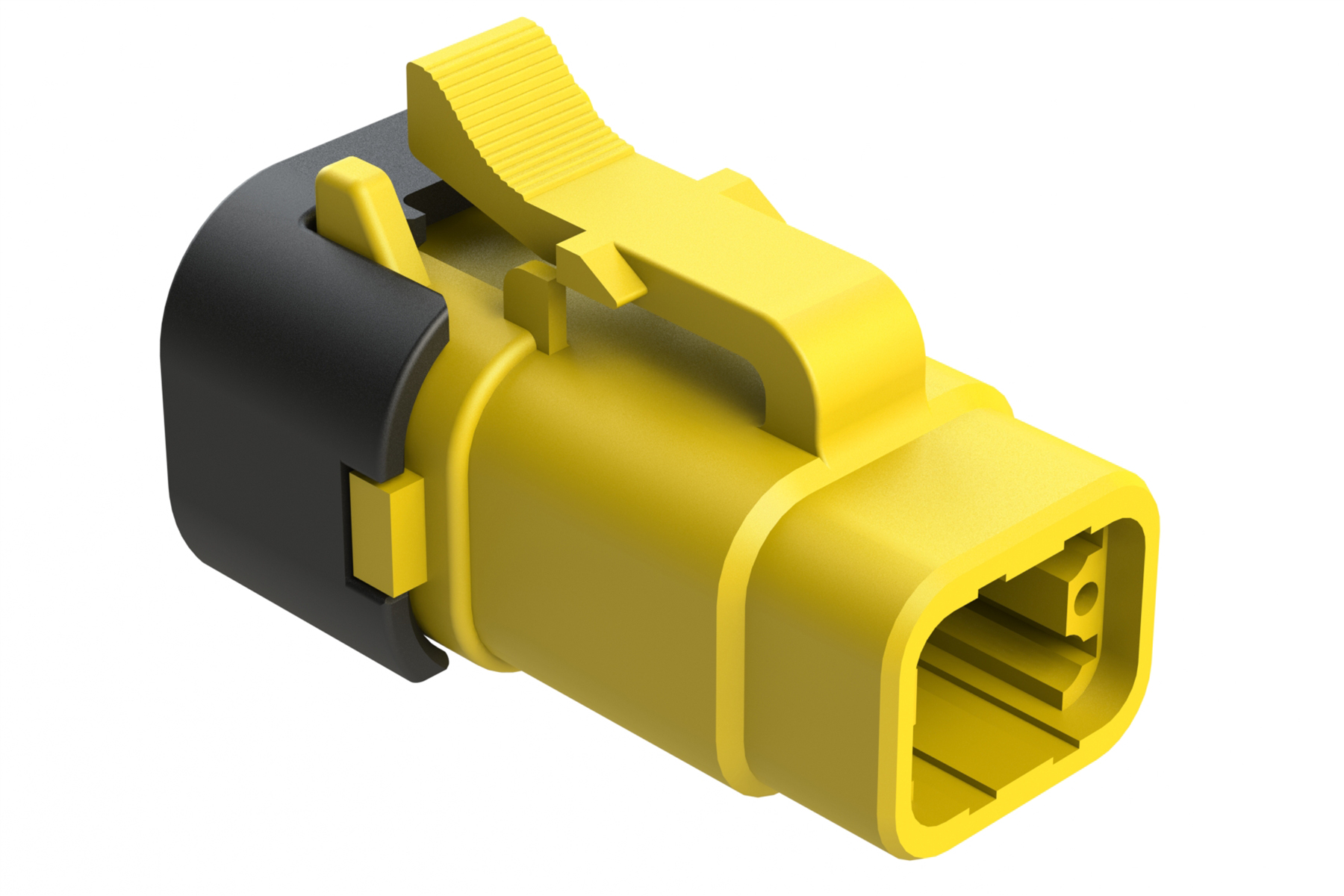

Introducing the ATM06-4S-SF01YEL, a high-performance female automotive connector from the ATM Series™. This yellow connector is designed for durability, with a plastic housing and silicone rubber seal that provide IP69K-rated protection against water and dust. Featuring 4 gold-plated contacts, it ensures reliable conductivity in extreme operating conditions, with a wide temperature range of -55 to 125 °C. Suitable for 22-16 AWG wires, it offers a secure and efficient solution for automotive applications. With a current rating of 7.5 A and a voltage rating of 250 V, this connector meets the demands of high-power systems. Its 100 mating cycle lifespan guarantees long-term performance, making it ideal for use in harsh environments. Upgrade your automotive connectors with the ATM064SSF01YEL for unparalleled reliability.
