| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems ATM04-4P-SF01 |
| Color: | Gray |
| Gender: | Male |
| IP Rating: | IP69K |
| Wire Size: | 22 - 16 AWG |
| Mating Cycles: | 100 cycle |
| Seal Material: | Silicone Rubber |
| Current Rating: | 7.5 A |
| Voltage Rating: | 250 V |
| Housing Material: | Plastic |
| Number of Contacts: | 4 |
| Maximum Operating Temperature: | 125 °C |
| Minimum Operating Temperature: | -55 °C |
| Series: | ATM |
| SKU: | AMEATM04-4P-SF01 |

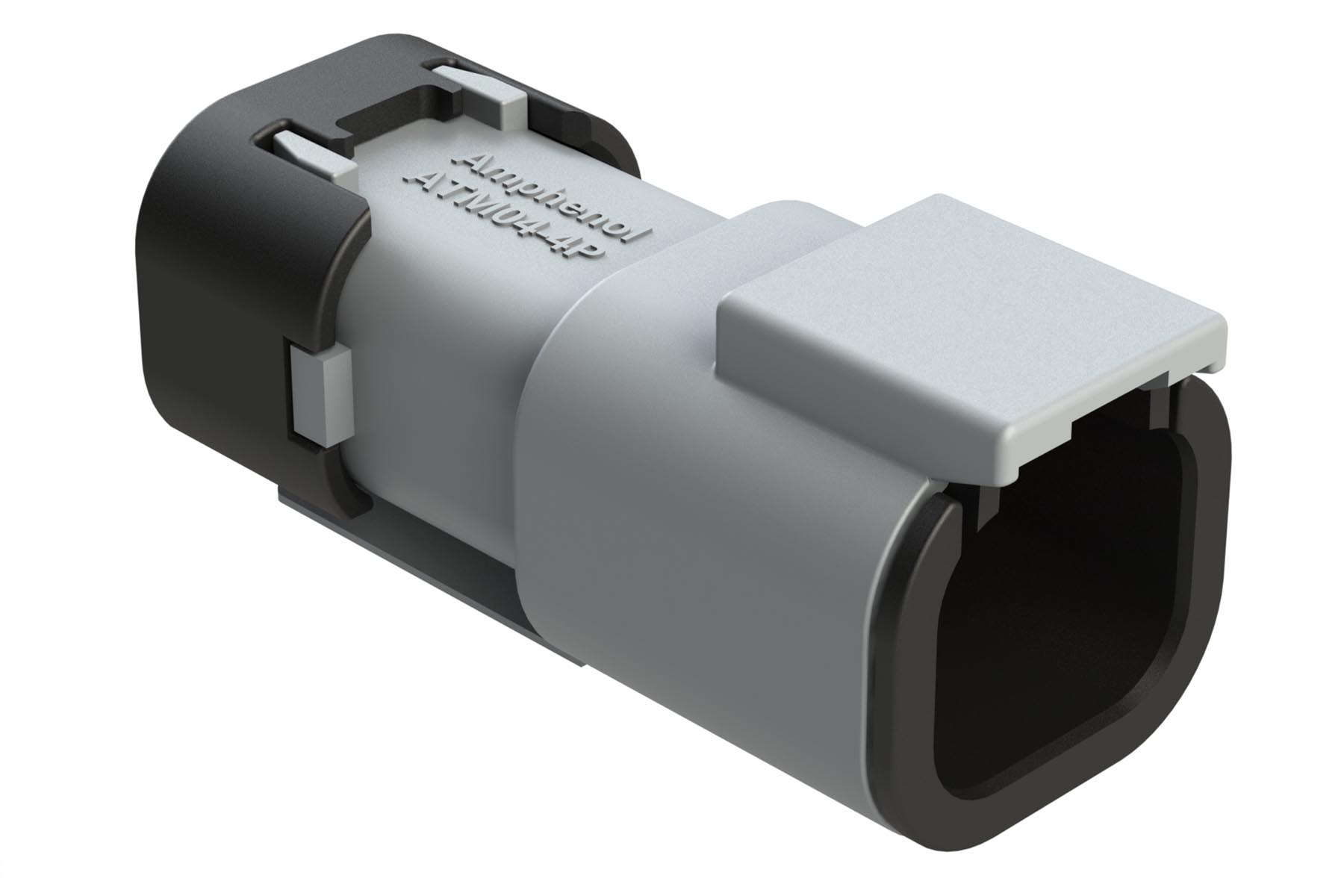

ATM04-4P-SF01
Specifications
Detailed Description
The ATM04-4P-SF01 is a rugged and reliable automotive connector designed for male applications. Featuring a durable plastic housing and silicone rubber seals, this connector is built to withstand extreme temperatures ranging from -55 °C to 125 °C and is rated IP69K for water and dust resistance. With 4 contacts, it offers a secure and stable connection for wires ranging from 22 to 16 AWG. The ATM Series™ connector has a current rating of 7.5 A and a voltage rating of 250 V, making it suitable for a wide range of automotive applications. With a mating cycle of 100, it ensures long-lasting performance in demanding environments. The ATM044PSF01 is the perfect choice for reliable power and signal transmission in automotive systems.
