| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems AT06-2S-D1224V |
| Color: | Black |
| Series: | AT |
| Gender: | Female |
| Housing Material: | Plastic |
| Number of Contacts: | 2 |
| Maximum Operating Temperature: | 85 °C |
| Minimum Operating Temperature: | -40 °C |
| IP Rating: | IP67 |
| Seal Material: | Silicone Rubber |
| Mating Cycles: | 100 cycle |
| Wire Size: | 20 - 14 AWG |
| Current Rating: | 13 A |
| Voltage Rating: | 12 V, 24 V |
| SKU: | AMEAT06-2S-D1224V |
AT06-2S-D1224V
Specifications
Detailed Description

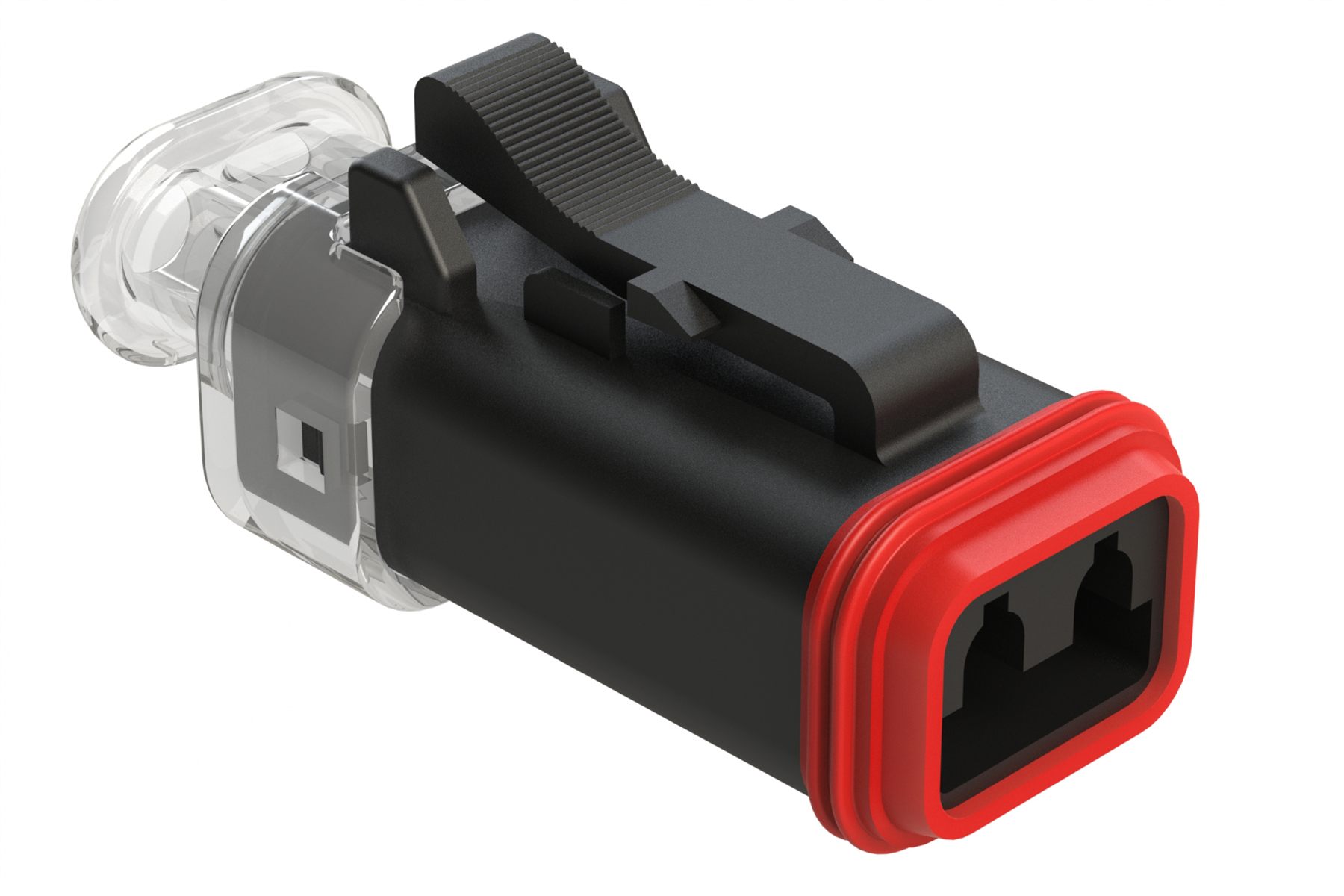

Introducing the AT062SD1224V, a high-performance automotive connector designed for female applications. Constructed with durable black plastic housing and featuring two contacts, this connector ensures reliable connectivity in a wide range of operating conditions. With a maximum operating temperature of 85°C and a minimum of -40°C, it is suitable for use in demanding environments. The IP67 rating guarantees protection against dust and water ingress, while the silicone rubber seal enhances durability. Rated for 13A at 12V or 24V, this connector accommodates wire sizes ranging from 20 to 14 AWG. With RoHS compliance and 100 mating cycles, the AT062SD1224V offers both reliability and environmental responsibility, making it the ideal choice for automotive power and signal applications.
Product Change Notice
| Effective Date | Description of Change | Download | |||
|---|---|---|---|---|---|
| 09/06/2021 | PCN-C1514S -REV-A - Product Improvement. In order to increase production capacity, new molds will be developed step by step, while products will be optimized and product technology will be improved slight adjustments will be mate to the new products, but the matching and functional performance will not be affected. | Download | |||
