AT04-3P-SR01ORG

ICC Number:AMEAT04-3P-SR01ORG
Manufacturer:Amphenol Sine Systems
Manufacturer Number:AT04-3P-SR01ORG
Datasheet:Catalog
ECAD Model:
3D Model

Specifications

AttributeValue
Product Category:
Manufacturer:Amphenol Sine Systems
Manufacturer Part Number:Amphenol Sine Systems AT04-3P-SR01ORG
Color:Orange
Gender:Male
Housing Material:Thermoplastic
Number of Contacts:3
IP Rating:IP69K
Seal Material:Silicone Rubber
Mating Cycles:100
Wire Size:20 to 14 AWG
Current Rating:13 A
Operating Temperature:-55 to 125 °C
SKU:AMEAT04-3P-SR01ORG

Detailed Description

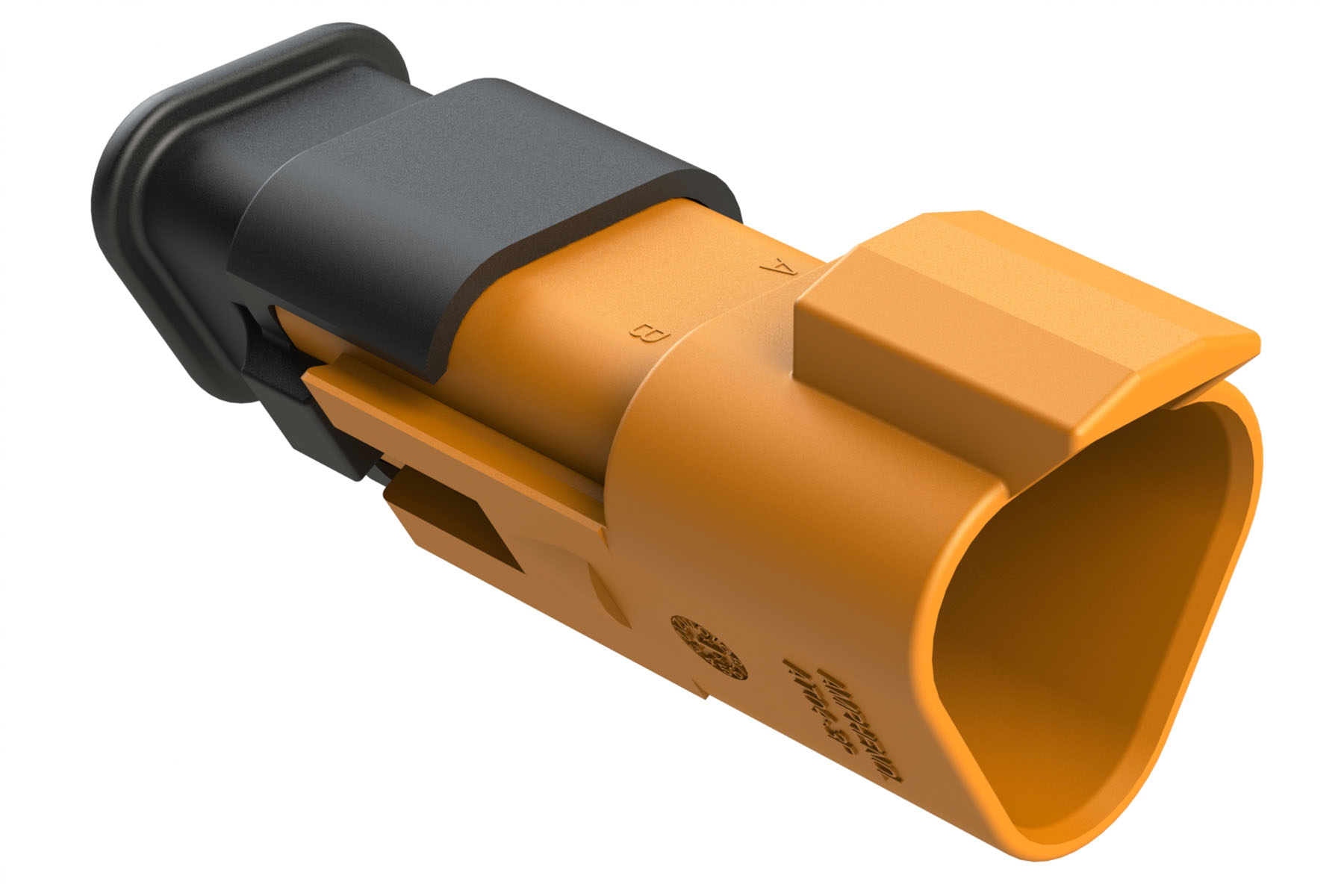

Introducing the AT04-3P-SR01ORG, a rugged and reliable male automotive connector designed for high-performance applications. With a durable plastic housing and a silicone rubber seal, this connector offers exceptional protection against harsh environmental conditions, boasting an IP69K rating for water and dust resistance. Featuring three gold-plated contacts, it ensures secure and efficient power transmission, with a current rating of 13A. Suitable for use in a wide range of automotive systems, from engine controls to lighting, this connector is built to last, with a minimum operating temperature of -55°C and a maximum of 125°C. Easy to install with 20-14 AWG wires, it is perfect for demanding automotive environments. Trust in the AT043PSR01ORG for your connectivity needs.
