| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Sine Systems |
| Manufacturer Part Number: | Amphenol Sine Systems ACPR-SBL |
| Gender: | Male |
| Series: | RCA |
| IP Rating: | IP40 |
| Wire Size: | 14 AWG |
| Housing Color: | Blue, Satin Nickel |
| Mating Cycles: | 500 cycle |
| Connector Type: | RCA |
| Current Rating: | 10 A |
| Contact Plating: | Gold |
| Contact Material: | Brass |
| Housing Material: | Die-Cast Zinc Alloy |
| Number of Contacts: | 2 |
| Termination Method: | Solder |
| Flammability Rating: | UL 94V-0 |
| Maximum Operating Temperature: | 75 °C |
| Minimum Operating Temperature: | -25 °C |
| SKU: | AMEACPR-SBL |

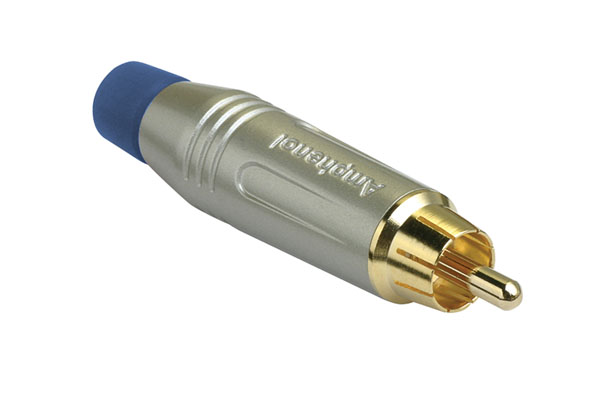

ACPR-SBL
Specifications
Detailed Description
Introducing the ACPR-SBL, a high-quality RCA male cable connector designed for premium audio and video transmission. Featuring gold-plated contacts and a sturdy die-cast zinc alloy shell, this connector ensures reliable signal transfer with minimal interference. The sleek satin finish and blue grommet not only enhance aesthetics but also provide added strain relief for long-lasting durability. With a solder termination method and accommodation for 14 AWG wire, installation is easy and secure. Rated for up to 10A current and with a wide operating temperature range of -25°C to 75°C, the ACPR-SBL is suitable for various professional audio and video applications. Compliant with UL 94V-0 flammability standards and boasting a 500-cycle mating life, this connector guarantees safety and performance in any setup. Upgrade your audiovisual connectivity with the ACPR-SBL.
