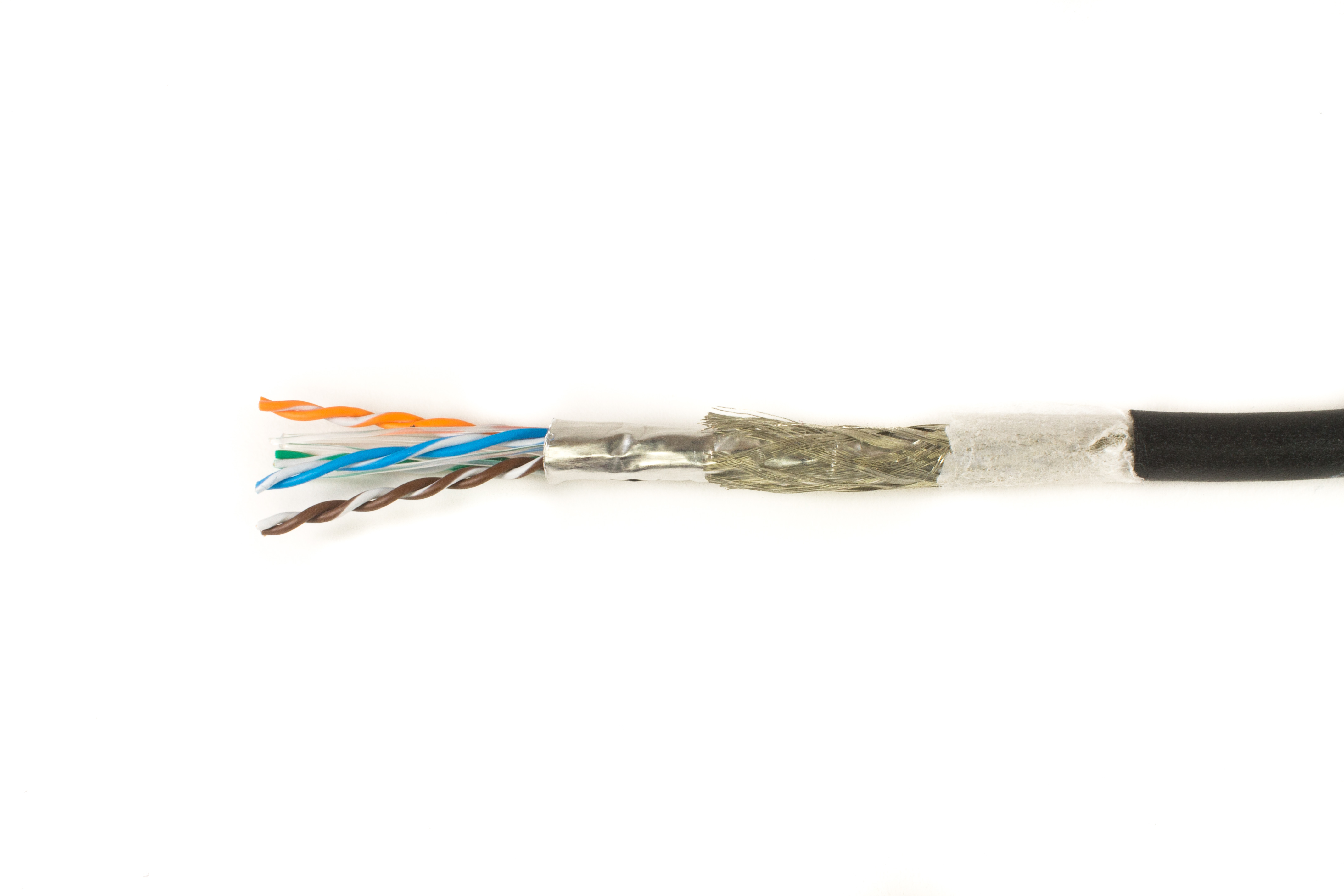

74006 BK002

74006 BLACK 500 FT

Attribute	Value
Product Category:	Wire, Cable & Assemblies
Manufacturer:	Alpha Wire
Manufacturer Part Number:	Alpha Wire 74006 BK002
Insulation Material:	Polypropylene
Number of Pairs:	4
Cable Length:	500 ft
Jacket Material:	Thermoplastic Polyurethane
Wire Size:	26 AWG
Outer Diameter:	0.252 in
Jacket Color:	Black
Voltage Rating:	300 VAC
Operating Temperature:	-40 to 80 °C
Performance Category:	Cat5e
Shielding Type:	Foil + Braid
Part Aliases:	74006 BK002
SKU:	ALP74006-BLK-500FT

Product	Part #	Description
	Alpha Wire 1375819-1	CST-100 II CONTACT TIN PLT
	Alpha Wire 2-520184-2	ULTRAFAST 250 ASSY REC 22-18 TPBR LP
	Alpha Wire 206039-1	CPC PLUG ASSEMBLY SIZE 17-28
	Alpha Wire 207345-1	CABLE CLAMP KIT,SZ 3
	Alpha Wire 320568	TERMINAL,PIDG R 12-10 8
$Product$	Alpha Wire 970-015-020R121	D-Sub Backshell, 15 Position, 180° Entry

Effective Date	Description of Change				Download
10/27/2021	PCN-21-009-1 - Reel Size Change. This letter serves as your formal notification that Alpha Wire will be transitioning all products on medium-sized wooden reels (nominal flange diameter of 12 to 18 inches) to plastic reels. The transition to plastic reels will begin in late October and there will be a rolling change as existing inventory on wooden reels is exhausted. Finished goods inventory before this running change will not be repackaged. This change is primarily due to the supply chain challenges for wooded reels. Additionally, the plastic reels offer equivalent durability at a lower weight. Since arbor (center) hole of the new plastic reels is of the same diameter class as the existing wooden reels, consumption and re-spool should function with existing equipment.				Download
