| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Aerospace |
| Manufacturer Part Number: | Amphenol Aerospace D38999/26FE99AN |
| Number of Contacts: | 23 (21+2) |
| Contact Plating: | Gold |
| Shell Size: | 17 |
| Contact Type: | Pin |
| Shell Material: | Aluminum |
| Wire Size: | 20 to 16 AWG, 24 to 20 AWG |
| Shell Type: | Plug, Straight |
| Shell Finish: | Electroless Nickel |
| Current Rating: | 13 A, 7.5 A |
| Voltage Rating: | 600 VAC |
| Insert Arrangement: | 17-99 |
| Keying Position: | N |
| Locking Mechanism: | Threaded |
| Operating Temperature: | -65 to 200 °C |
| Without Contacts: | Yes |
| MIL Type: | MIL-DTL-38999 |
| SKU: | AAOD38999/26FE99AN |
D38999/26FE99AN
Specifications
Detailed Description
MIL-DTL-38999/26FE99AN is a high-performance straight plug connector designed for demanding military and aerospace applications. Featuring 23 removable crimp contacts in a 17 shell size with electroless nickel coating, this connector ensures reliable conductivity and EMI/RFI shielding in harsh environments. With a wide operating temperature range from -65°C to 200°C, it is suited for extreme conditions. The aluminum shell construction, plated for enhanced durability, offers excellent environmental resistance. This RoHS non-compliant connector is meticulously engineered to meet stringent military specifications, making it ideal for use in mission-critical systems.
Frequently Bought Together
| Product | Part # | Description | Stock |
|---|---|---|---|

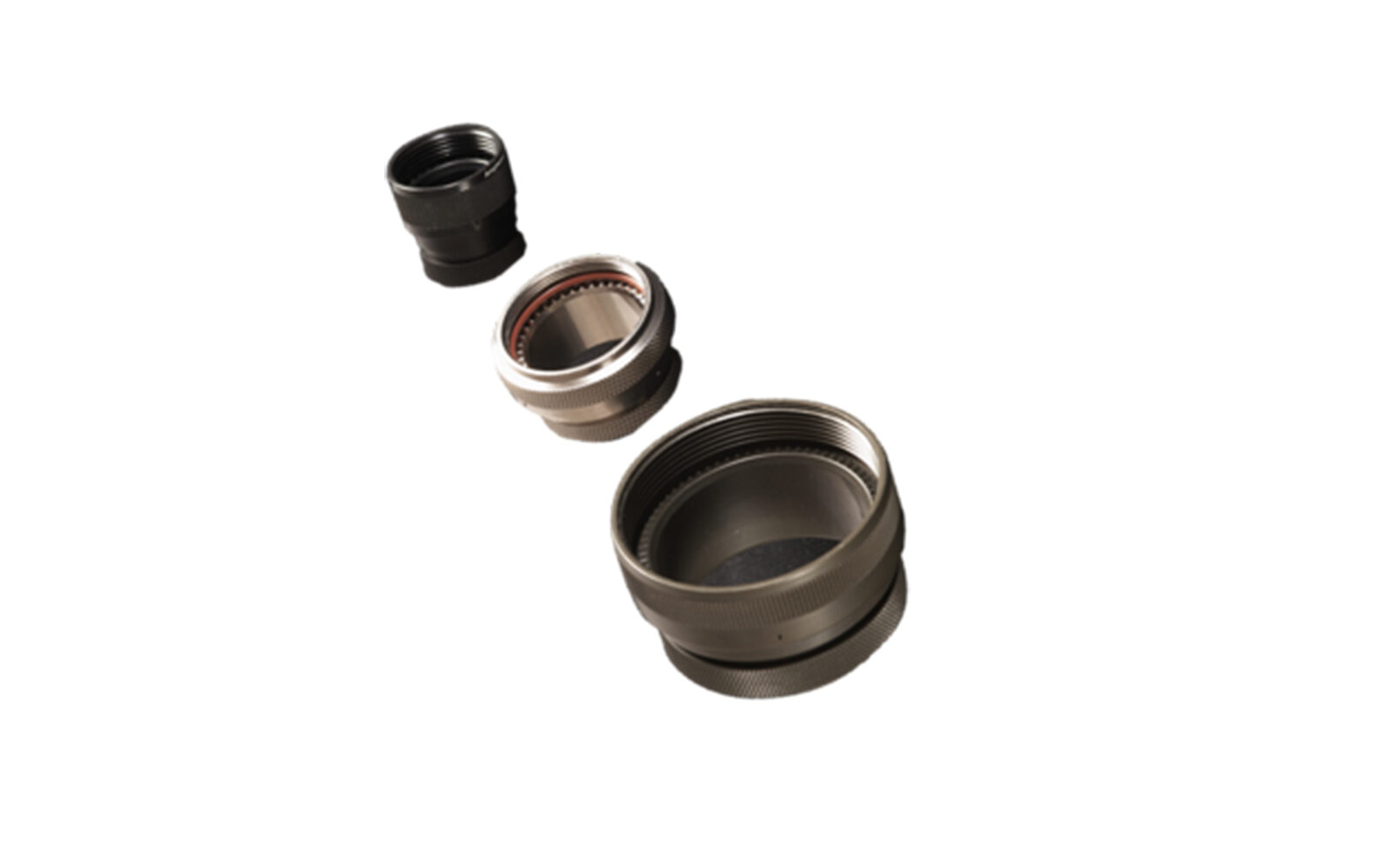

 | Amphenol Aerospace M85049/69-11N | Backshell |  |
