| Attribute | Value |
|---|---|
| Product Category: | |
| Manufacturer: | Amphenol Aerospace |
| Manufacturer Part Number: | Amphenol Aerospace D38999/24MC8AC |
| Number of Contacts: | 8 |
| Contact Plating: | Gold |
| Shell Size: | 13 |
| Contact Type: | Pin |
| Shell Material: | Composite |
| Wire Size: | 24 to 20 AWG |
| Shell Type: | Jam Nut Receptacle |
| Shell Finish: | Electroless Nickel |
| Current Rating: | 7.5 A |
| Voltage Rating: | 600 VAC |
| Insert Arrangement: | 13-8 |
| Keying Position: | C |
| Locking Mechanism: | Threaded |
| Operating Temperature: | -65 to 200 °C |
| Without Contacts: | Yes |
| MIL Type: | MIL-DTL-38999 |
| SKU: | AAOD38999/24MC8AC |
D38999/24MC8AC
Specifications
Detailed Description

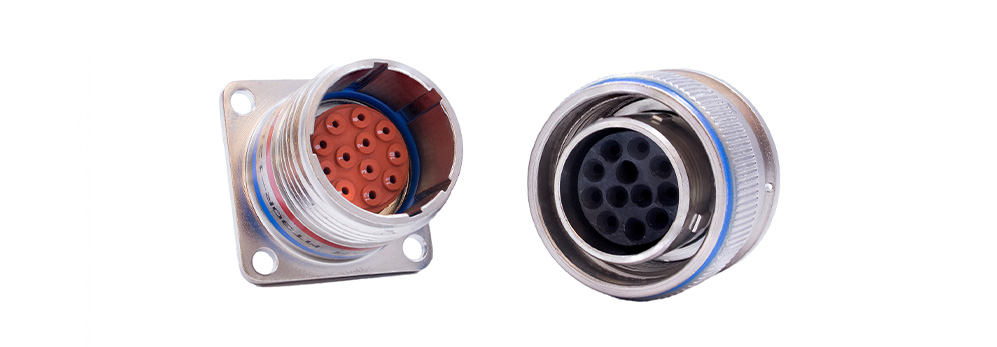

The MIL-DTL-38999/24 (D38999) Series III connectors are designed for harsh environments, featuring wall mount and jam nut receptacles along with straight self-locking RFI plugs. With 9 shell sizes and 54 insert arrangements available, these connectors accommodate various contact sizes including 22D, 20, 16, 12, 10 power, and 8 twinax. Constructed from durable materials such as aluminum, stainless steel, and lightweight composite, they offer reliable performance. Different plating options, from olive drab cadmium to passivated stainless steel, cater to diverse application needs. With RoHS-compliant and Boeing BACC-approved variants, these connectors ensure high-quality and environmentally friendly connectivity in military and industrial settings.
